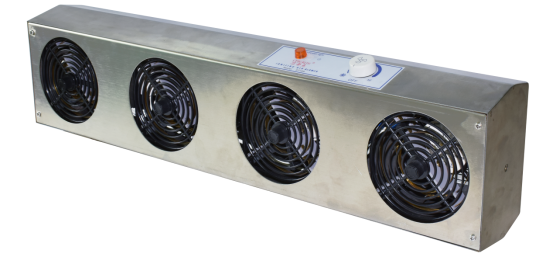

ST106B Stainless Steel Four-Head AC Ion Fan

Product features:

1. Adjustable ion air volume

2. Optional installation of cold air heating device

3. Optional installation of filter screen

4. Ion regulator can be installed

5. There is a special ion needle cleaning brush for easy cleaning and maintenance

6. Large-scale ion wind zone with continuously adjustable wind speed

7. When corrosive gas is introduced, stainless steel fan has stronger corrosion resistance than ordinary fan

Technical Parameter

Input voltage	AC110v~220V 50/60HZ
Capacity	55VA
Output voltage	5.6KV
Ionic equilibrium	Below ±10V (when leaving the factory)
Static removal time	1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory)
Air quantity	1.4~3.2m3/min X 4 fan
Wind speed	0.8~1.0m/s (300mm from the center)
Ozone generation	Under 0.006ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation)
Filter device	Pre-filter stage
Output signal	Without

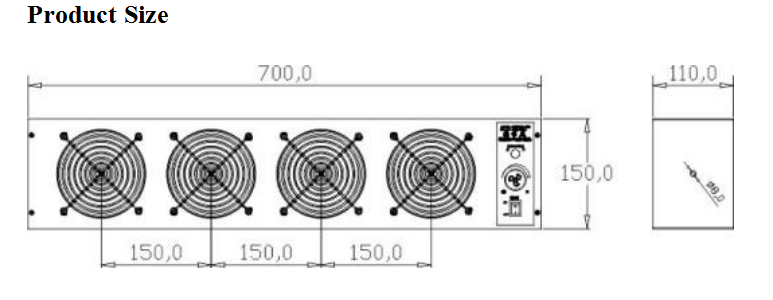

Main body size	700mm(L)×110mm(W)×150mm(H) (including bracket)
Weight	5.2kg
Noise	66dB(A) (distance 1m)
Sheathing material	No stainless steel
Attached belonging products	Operating instructions, test reports, certificates and warranty cards
Accessory part	Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A

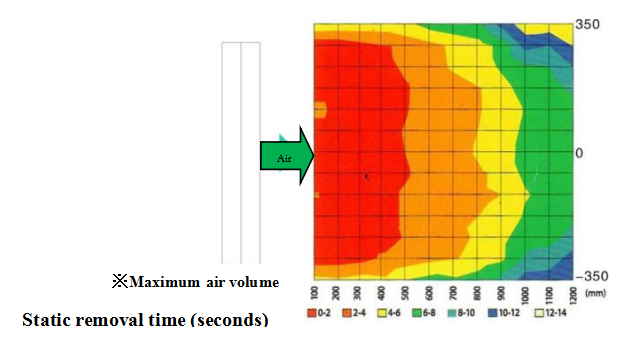

Electrostatic Removal Area
