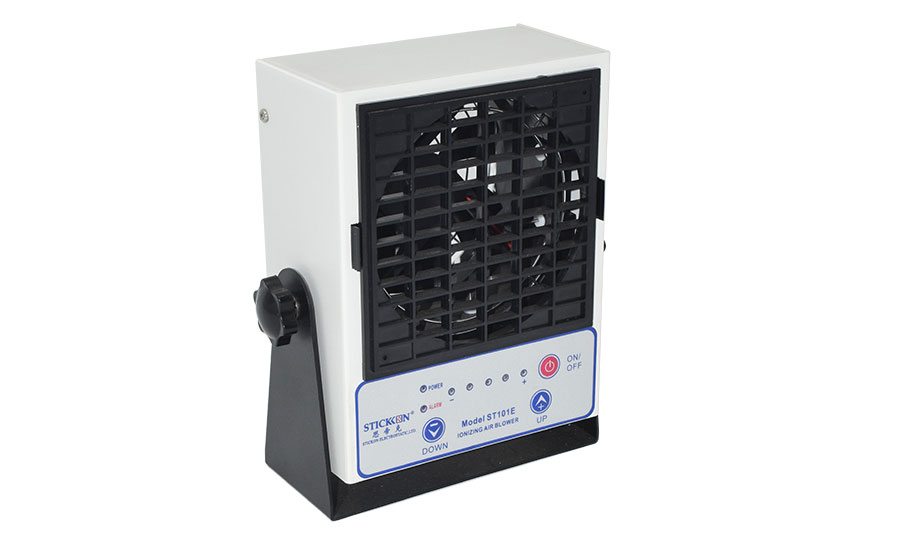

ST101E Button-Type Desktop DC Ion Blower

Product features:

1. Equipped with a balance indicator that can often confirm the balance of positive and negative ions to improve

maintenance and static removal efficiency. Equipped with a balance indicator of positive and negative ion balance

to improve maintenance efficiency and static removal efficiency

2. Using HDC-AC mode, the discharge needle is anti-dirty, and can play a stable antistatic performance for a long

time. Through micro-discharge detection and overcurrent detection, the safety is ensured

3. Through micro-discharge detection and over-current detection, safety is ensured

4. The angle locking mechanism of the main body ensures that the angle of the main body will not change under

external causes such as vibration

5. Equipped with alarm function of abnormal high pressure and blower stop

Technical parameter

Input voltage	DC24V (with AC adapter, support AC100-240V)
Capacity	6VA
Output voltage	±7000V0-p
Ionic equilibrium	Under ±10V (300mm away, when leaving the factory)
Air quantity	0.7~1.2m³ /min
Wind speed	1.2~1.9m/s (the distance from the vent window to the center is 300mm)
Wind speed	0.7~1.2m/s (wide-angle vent window is 300mm away from the center)
Ozone generation	Below 0.004ppm (150mm center in front of tuyere)
Work environment	Ambient temperature: 0 ~ 40℃, ambient humidity: 15~ 85%RH (no condensation)
Filter	Prefilter stage
Abnormal output	Normal value : ON; In case of abnormal high voltage output or abnormal blower (red LED), 0FF MOS FET relay has no voltage contact output, with maximum current of 200mA and applied voltage below 30VDC
Main body size	185mm (L) ×92mm (W) ×193(H)mm (including bracket)
Weight	1.4kg
Noise	51dB(A) distance 1m
Sheathing material	Iron
Appendix	Operating instructions, test reports, certificates and warranty cards
Accessory part	The replacement discharge needle assembly DC012B, the replacement filter AC006A and the AC adapter DC013B

Electrostatic removal area

Panel functions

Product size

Optional accessories
