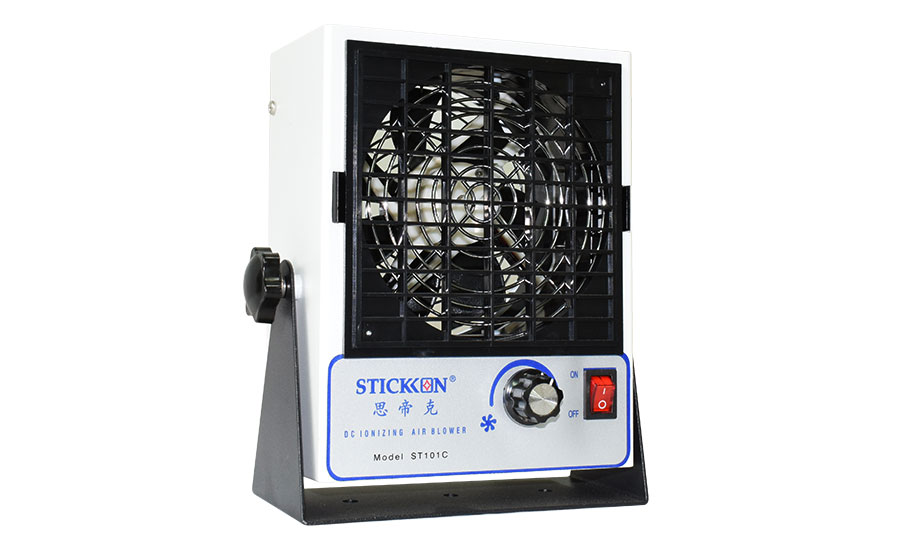

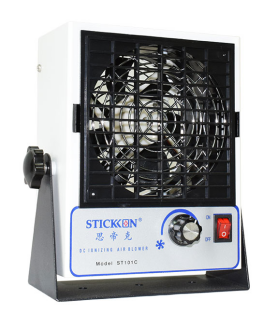

ST101C Automatic Clean Desktop DC Ion Blower

ST101C Automatic cleaning type

Is the successor of ST101C,

Electrode maintenance has automatic replacement function,

A cleaning brush is arranged inside for cleaning,

Automatic occasions basically do not need maintenance.

Product features:

1. Automatic discharge needle cleaning function (once every 24 hours) equipped with positive and negative ion

balance indicator to improve maintenance efficiency and static electricity removal efficiency

2. Equipped with positive and negative ion balance indicator to improve maintenance efficiency and static

electricity removal efficiency

3. Using HDC-AC mode, the discharge needle is anti-fouling and can play a stable antistatic performance for a

long time

4. Through micro-discharge detection and over-current detection, safety is ensured

5. Equipped with alarm function when the high pressure is abnormal and the blower stops

6. Automatic occasions basically do not need maintenance

Technical parameter

Input voltage	DC24V (with AC adapter, support AC100-240V)
Capacity	18VA
Output voltage	±7500V0-p
Ionic equilibrium	Under ±5V (300mm away, when leaving the factory)
Air quantity	1. 4~3. 2m³ /min
Wind speed	1.8 ~3.6m/s (the distance from the vent window to the center is 300mm) 0.4~0.6m/s (wide-angle vent window is 300mm away from the center)
Ozone generation	Under 0.004ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15.85% RH (no condensation)
Filter	Prefilter stage
Output signal	MOSFET relay has no voltage contact output (NC output), (alarm output and ion balance alarm output)
Main body size	180mm (L) ×110mm (W) ×200 (H)mm (including bracket)
Weight	1.5kg
Noise	59dB(A) distance 1m
Sheathing material	Iron
Appendix	Operating instructions, test reports, certificates and warranty cards

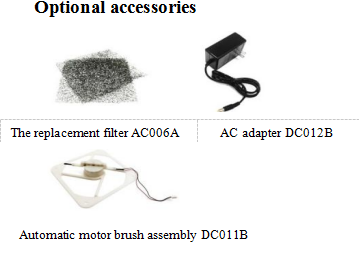

Accessory part	The replacement filter AC006A, the AC adapter DC013B and the automatic motor brush assembly DC011B

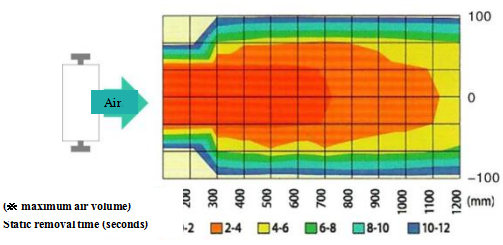

Electrostatic removal area

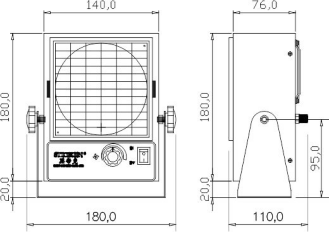

Product size
