ST104 Elongated Horizontal Ion Fan
ST104 Elongated Horizontal Ion Fan

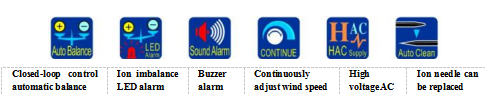

Product features:
1. The coverage area of ion airflow is larger than that of ST104 horizontal ion fan
2. The wind power adjustment range is wider than that of ST104 horizontal ion fan
3. There is a special ion emitter cleaner
4. There is a special cold air heating device
5. The fan has good grounding protection
6. Electrode cleaning brush can carry out daily cleaning of motor
Technical parameter
Input voltage | AC110V~220V 50/ 60HZ |
Capacity | 70VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air volume | 45~110CFM |
Ozone generation | Below 0.04ppm (150mm center in front of tuyere) |
Working environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) |
Filter | Prefilter stage |
Output signal | None |

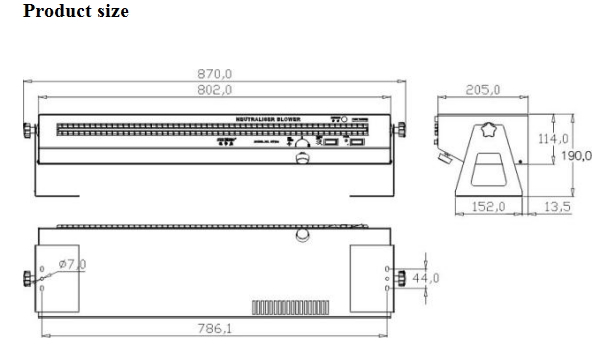

Main body size | 870mm(L)×205mm(W) ×190mm(H) (including bracket) |
Weight | 8.65kg |
Noise | 62dB(A) distance 1m |
Sheathing material | Iron |
Accessories | Operating instructions, test reports, certificates and warranty cards |

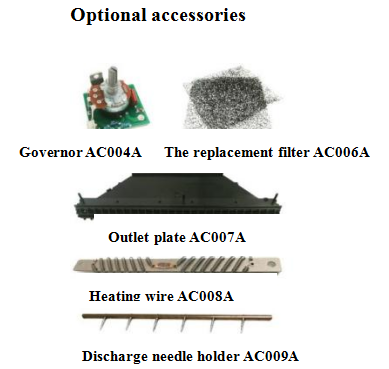

parts | Governor AC004A, replacement filter AC006A, air outlet plate AMC00TA, heating wire AC008A and discharge needle holder AC009A |

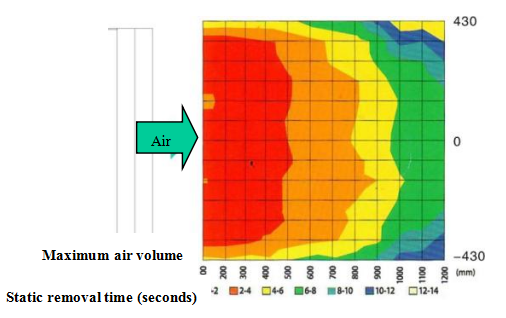

Electrostatic removal area
