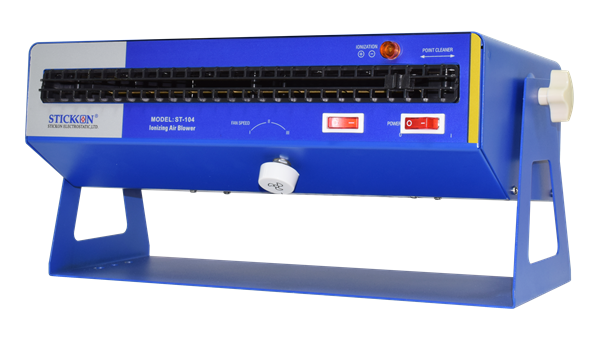

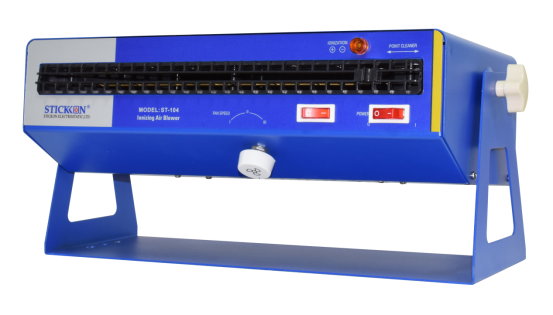

ST104The Latest Horizontal Ion Fan
ST104The Latest Horizontal Ion Fan
The working principle of
Ionic fans produce a large flow of positive and negative charges that neutralize the charge on objects. When the charge on the surface of the object is negative, it will
absorb the positive charge in the airflow, when the charge on the surface of the object is positive, it will absorb the negative charge in the airflow, so that the static
electricity on the surface of the object is neutralized, to achieve the purpose of eliminating static electricity.
Product features:
1. Appearance color dark blue
2. The air volume is larger, the neutralization time is faster, and the ion wind covers a larger area
3. Good stability, high ion balance, no need to manually adjust ion balance
4. Equipped with manual ion needle cleaner, ion generation indicator lamp, built-in fan and high
voltage power supply
5. Electrode cleaning brush can carry out daily cleaning of motor
6. Small, lightweight and easy to transport
7. Heating network device can be added (optional)
Technical parameter
Input voltage | AC110V~220V 50 / 60HZ |
Capacity | 55VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 45~ 110CFM |
Ozone generation | Below 0. 004ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0 ~40°C, ambient humidity: 15~85%RH (no condensation) |
Filter | Prefilter stage |
Output signal | Without |
Main body size | 455mm(L) X 210mm(W) X 190mm(H) (including bracket) |
Weight | 6.5kg |
Noise | 62dB(A) distance 1m |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |
Accessory part | Governor AC004A, replacement filter AC006A, air outlet plate AC007A, heating wire AC008A and discharge needle holder AC009A |

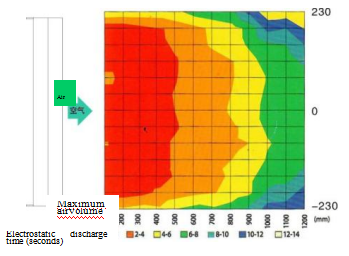

Electrostatic removal area

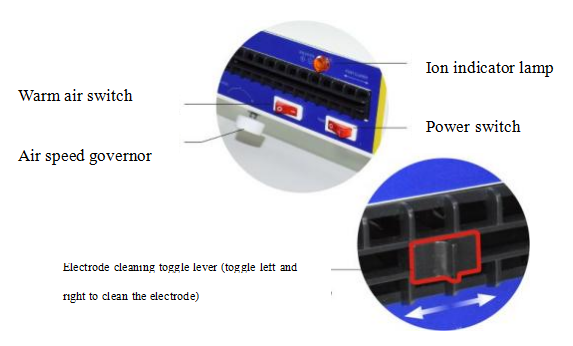

Panel functions
Product size

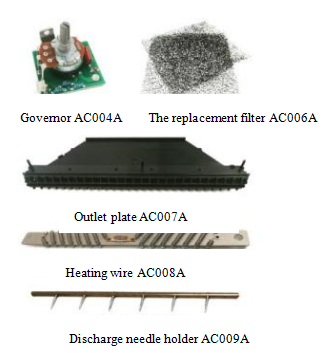

Optional accessories
Example of usage scenarios
