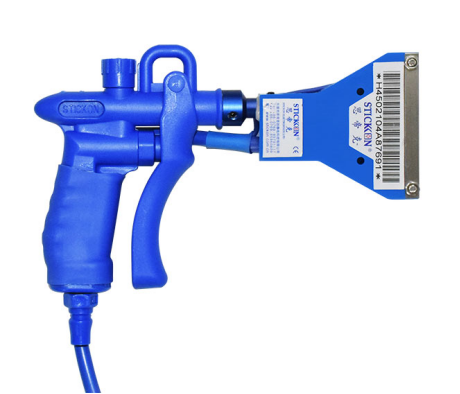

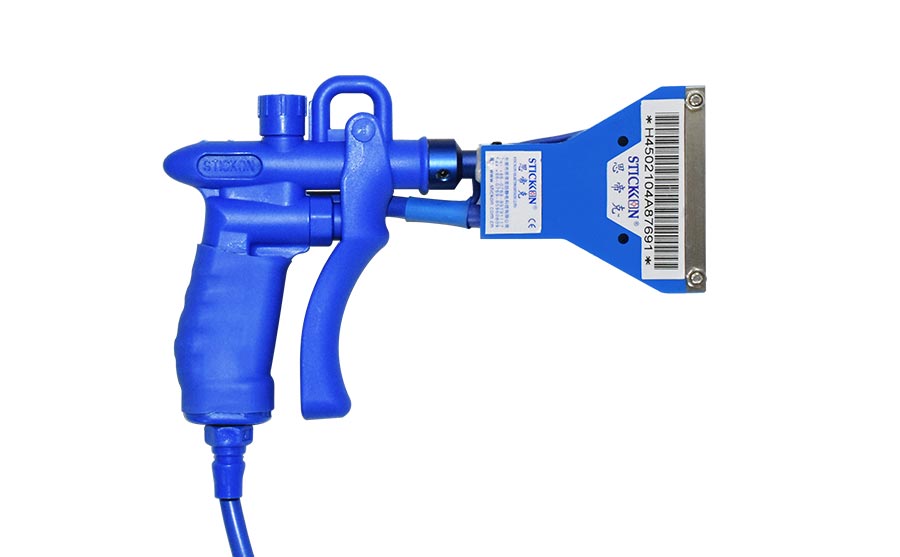

ST302D Sector Ion Air Gun

Product Features:

1. Provide large-area surface cleaning and strong electrostatic removal effects for complex

industrial environments

2. Light weight, strong impact resistance, human body design and easy operation

3. Special air volume amplification and current increasing characteristics, easy to clean the dust

on the surface

4. The optional flat air nozzle can generate fan-shaped airflow and cover a larger area

5. It needs to be equipped with ST402A high-voltage generator for integrated use

High Voltage Generator Is Required:
ST402A One Drag Two/One Drag Four

Model Parameters	ST402A
Operating power supply	110V/60HZ or 220V/50HZ
Consume power supply	0.23A or 0.12A
Power	85W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage cable	1.5m
Output voltage	5.6KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST302D
Ion generation mode	Ac type
Material of discharge needle	Wolfram steel
Host material	Iron/ABS fireproof engineering plastics
Air ion supply range	10cm~18cm
Air inlet pipe	Inner diameterΦ8 air duct
Body size	204mm(L)×33mm(W)×165mm(H)Standard cable length is 2.5m
Appendix	Instructions/warranty cards/certificates
Performance	Static removal time<1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	<0.02ppm or less (distance 200mm measured distance)

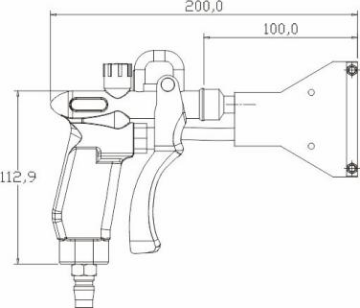

Product Size
