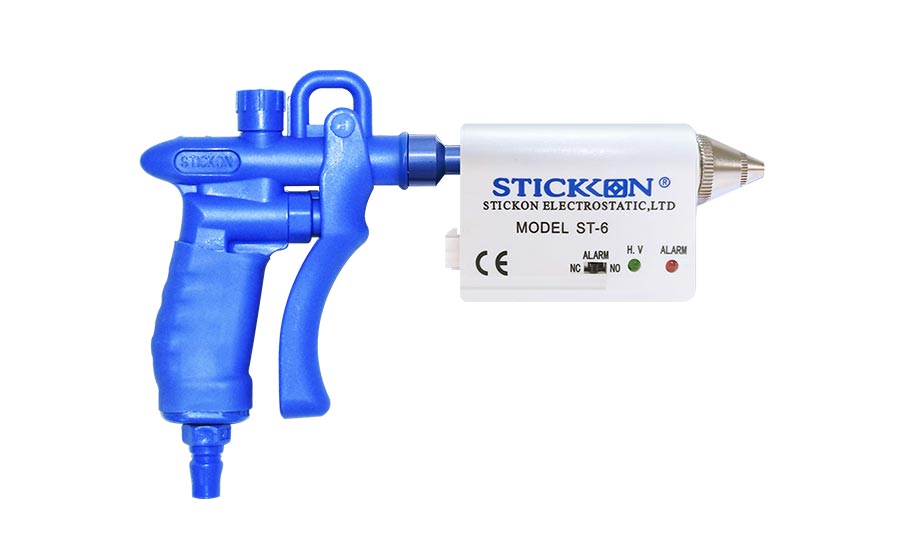

ST6G The Latest High Frequency DC Ion Air Gun

Product Overview

High efficiency, strong blowing force and low gas consumption, and wide application;

The ion balance reaches 0±15 V, which meets the high-end electrostatic control and dust removal

requirements of electronic manufacturing and medical equipment;

The gun nozzle has air outlet filter, which can ensure clean air blowing;

The gun body is lightweight and solid-resistant, and the touch switch and air volume control valve are

comfortable to operate;

There is ion balance adjustment system;

Two sections of LED bright display power supply and high voltage output;

The gun body and trachea cable shell are made of electrostatic dissipation materials;

In addition, it is equipped with a hanger to hold the air gun.

Product Features:

High reliability: Use air connectors to improve ozone resistance.

Ensure security: The transformer box with new structure is used to stop high voltage output when cleaning and

 replacing the discharge needle

Nozzles with improved ozone resistance: Various sprays with high ozone resistance

Easy to maintain: The discharge needle is detachable and easy to maintain, and can be pulled out together with the

transformer from the rear to clean and replace the discharge needle conveniently.

High pressure stop alarm: It has alarm display function when high voltage stops, and is equipped with normally open

and normally closed double contacts without signal contact.

Clean check [C.C]: It is also equipped with normally open non-signal contacts

Electrostatic Removal Characteristics

Use Field:

Static removal of electronic equipment

1. Static removal at wafer level (film peeling and static removal around bracket)

2. Static removal of cutting device (film peeling and static removal around bracket)

3. Equipment inspection device

4. ESD countermeasures for handling after packaging

5. Device for equipment mounting process

6. Static removal of operation parts such as mounting robot

7. Assembly lines for small products such as mobile phones

8. Local static removal of (ESD) products such as DVD pickup

Technical Parameter

Note 1: Use 150mm, 20pF (Charged plate monitor) for measurement

Note 2: The static removal time is the attenuation time from± 1000 V→±100 V, and the static removal time is less than <1.5S.

Note 3: The measured distance is 50mm from the flat panel monitor

Note 4: Test standard: ANSI/ESD.STM3.1,ANSI/ESD.SP3.3,SJ/T 11446—2013

Product Size
