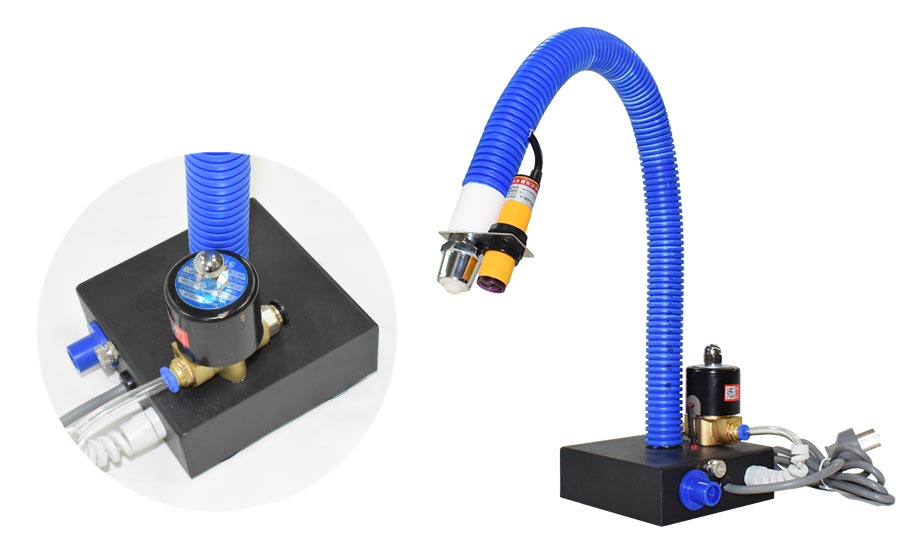

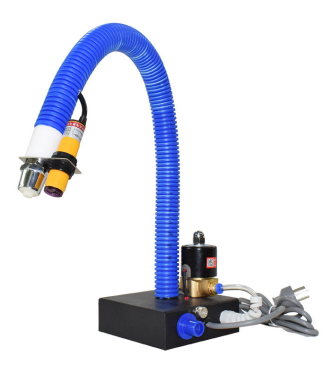

ST203BB Infrared Induction Split Ion Wind Snake
ST203BB Infrared Induction Split Ion Wind Snake
Product features:
1. Control the working state of gas with infrared switch
2. Adjustable air valve can be added to adjust the air volume at will.
3. The photoelectric switch controls the air flow and saves the air source
4. Stickon ST401A high voltage ionizer is required.
High Voltage Generator is Required: ST401A One Tow Two/One Tow Four | |
| |
Model Parameter | ST401A |
Operating power supply | 110V/ 60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 75W |
Operating temperature range | 0-50°C |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 4.6KV×2 or4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical parameter
Model | ST203BB |
Ion generation mode | Ac type |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter Φ 8 |
Body size | 135mm(L)×115mm(W)×610mm(H) Standard cable length 2m |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |

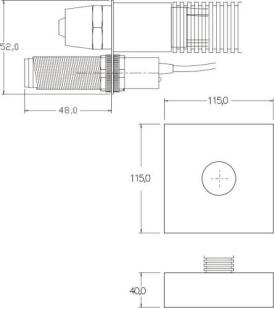

Product size
