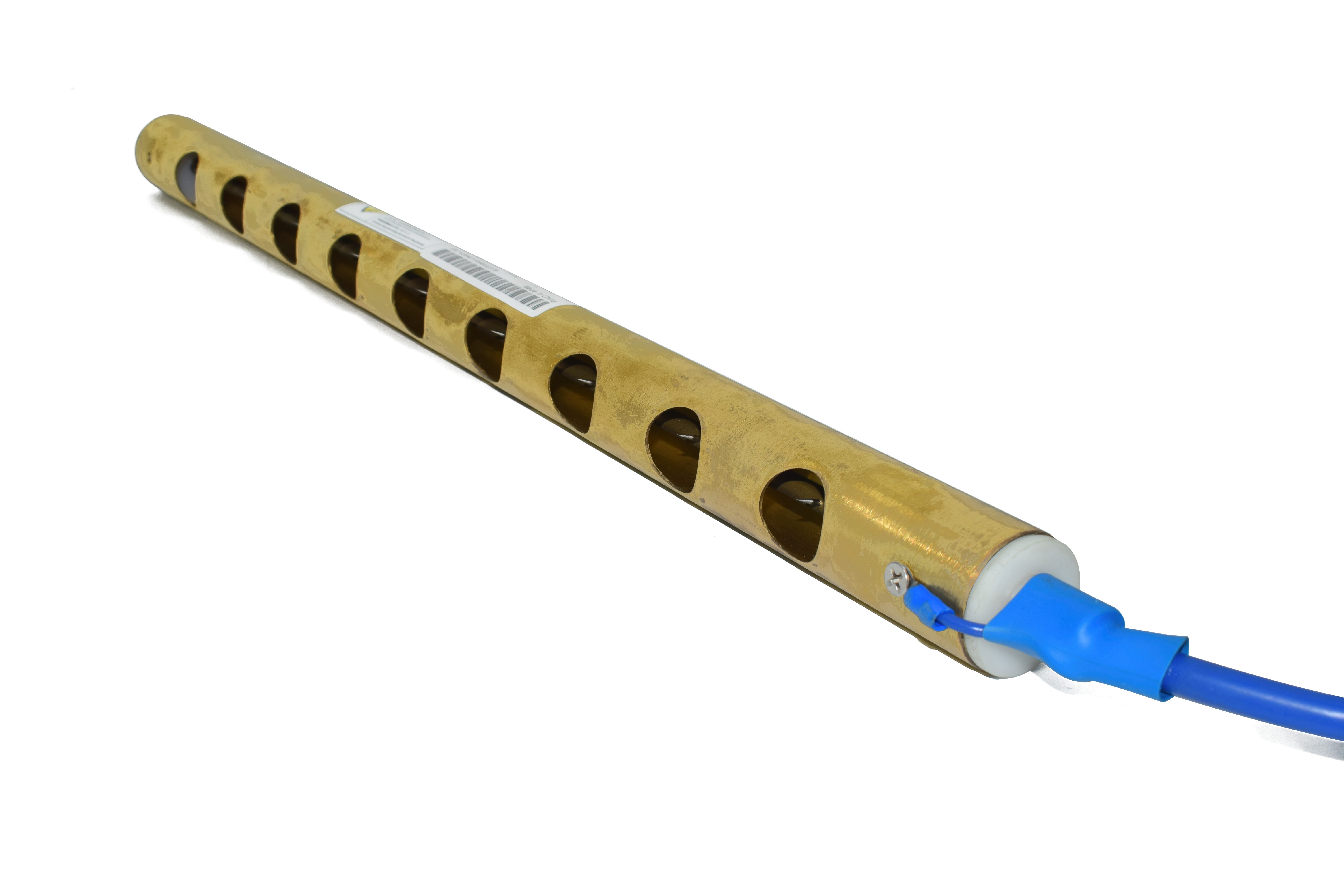

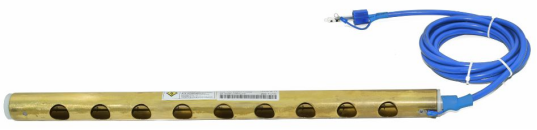

ST-501 Ionic Copper Bar
ST-501 Ionic Copper Bar
Customizable length: 160~3000mm
Product Features
1. Neutralize static electricity quickly
2. Have good grounding protection
3. Suitable for small space installation
4. Without wind
5. It needs to be integrated with ST402A high-voltage power supply
Model Parameter | ST402A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 85W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 5.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST501 |
Ion generation mode | Ac type |
Input voltage | 110V~220V 50~60HZ |
Power consumption | 110W |
Output voltage | 5.6KV |
Output when abnormal | 6.0KV |
Gas consumption | 0.05m3/min within 600mm of bar length |
Neutralization time | <2s |
Measure | Diameter 32mm×(160mm~3000mm) |
Supply pressure range | Under 0.5Mpa |
Ionization equilibrium | <±125V |
Work environment | Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation) |
Product Size
