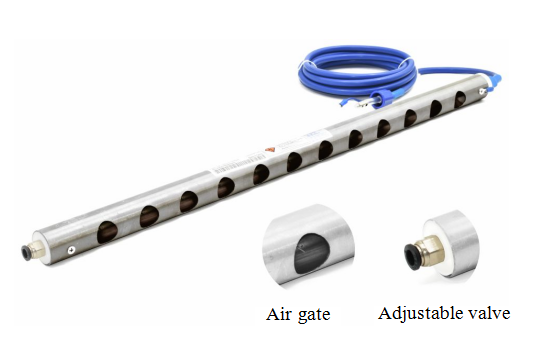

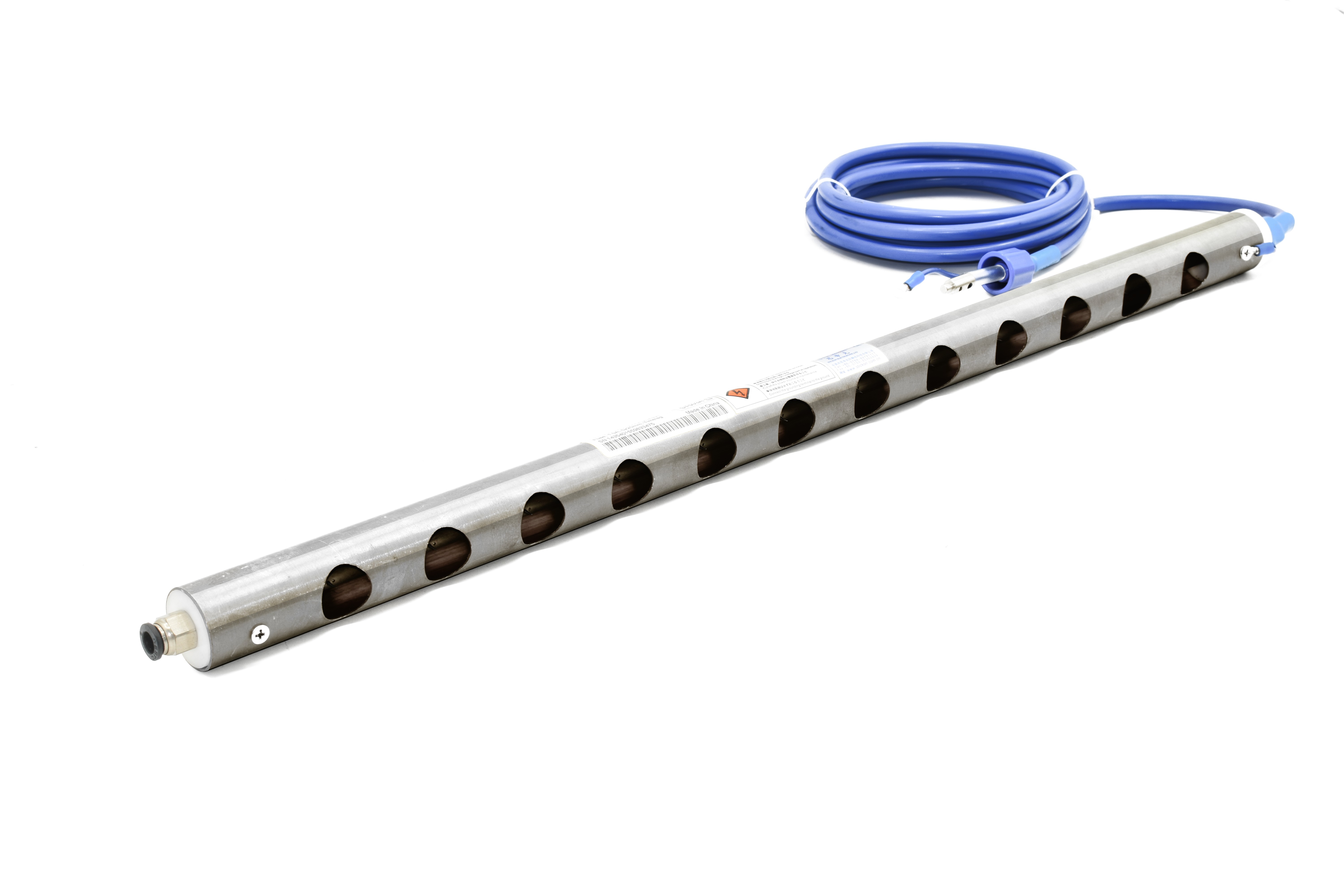

ST502A Stainless Steel Ion Air Bar

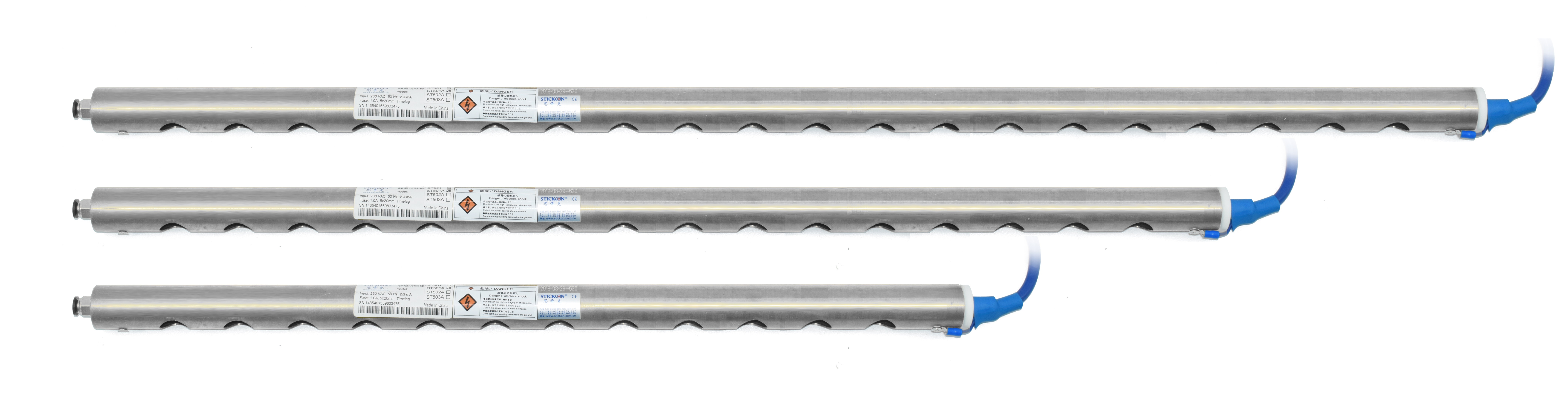

Customizable length: 150~3000mm

Product Features:

1. Row discharge needle with air pressure device

2. The bar is small in size, and the air source is output from the bar core, thus saving installation space

3. It is made of stainless steel shell, which is firm and beautiful, with strong air power, and can remove static

electricity and dust quickly and quickly

4. The working distance can reach 100mm, and it is suitable for automatic static and dust removing device.

5. It needs to be integrated with ST402A high-voltage power supply

6. Outlet in the middle, suitable for small space installation

Model Parameter	ST402A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	85W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	5.6KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST502A
Ion generation mode	Ac type
Input voltage	110V~220V 50~60HZ
Power consumption	110W
Output voltage	5.6KV
Output when abnormal	6.0KV
Gas consumption	0.05m3/min within 600mm of bar length
Neutralization time	<2s
Measure	Diameter 32mm×(150mm~3000mm)
Supply pressure range	Under 0.5Mpa
Ionization equilibrium	<±125V
Work environment	Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation)

Product Size
