ST503B Piezoelectric Ion Air Bar
ST503B Piezoelectric Ion Air Bar
Customizable length: 150~3000mm
Product Features:
1. Built-in unique high air volume trachea can quickly neutralize ions
2. The hard aluminum shell is wrapped with ion needle, which has no electric shock design, beautiful appearance
and durability
3. Stable and safe working performance.
4. It can only be used with ST403A high voltage power supply (it needs to be purchased separately).
5. Silver shell
Model Parameter | ST403A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 95W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 7.0KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST503B |
Ion generation mode | Piezoelectric type |
Input voltage | 110V~220V 50~60HZ |
Power consumption | 110W |
Output voltage | 7.0KV |
Output when abnormal | 7.5KV |
Gas consumption | 0.05m3/min within 600mm of bar length |
Neutralization time | <2s |
Measure | Diameter 30mm×(150mm~3000mm) |
Supply pressure range | Under 0.5Mpa |
Ionization equilibrium | <±40V |
Work environment | Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation) |

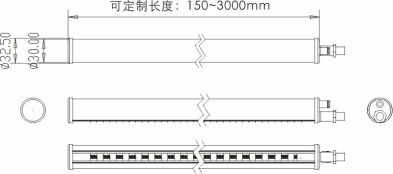

Product Size

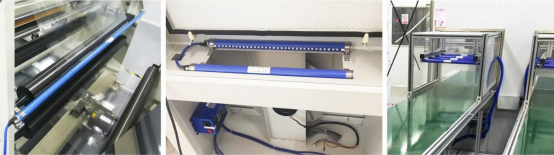

Installation Scene
