The latest ST-504A The Latest Piezoelectric Ion Bar

Customizable length: 150~3000mm

Product Features:

1. Built-in unique high air volume trachea can quickly neutralize ions

2. Aluminum alloy shell, because of its small shape, is suitable for being placed in a narrow space

3. Commonly used for mechanical equipment pre-installation: no electric shock design

4. Built-in unique air pipe with high air volume can neutralize static electricity quickly.

5. It can only be used with ST403A high voltage power supply (it needs to be purchased separately).

6. Blue shell

7. Without wind

Model Parameter	ST403A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	95W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	7.0KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	Latest models of ST504A
Ion generation mode	Piezoelectric type
Input voltage	110V~220V 50~60HZ
Power consumption	110W
Output voltage	7.0KV
Output when abnormal	7.5KV
Gas consumption	0.05m3/min within 600mm of bar length
Neutralization time	<2s
Measure	212mm(H)×140mm(W)×150mm~3000mm(L)
Supply pressure range	Under 0.5Mpa
Ionization equilibrium	<±100V
Work environment	Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation)

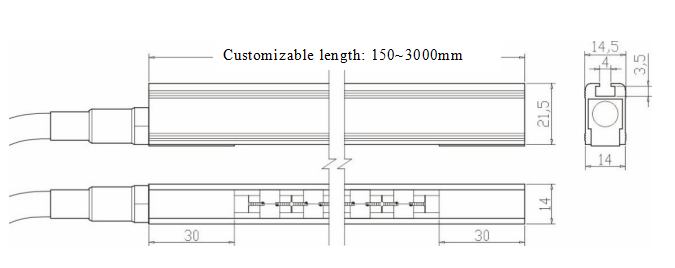

Product Size
