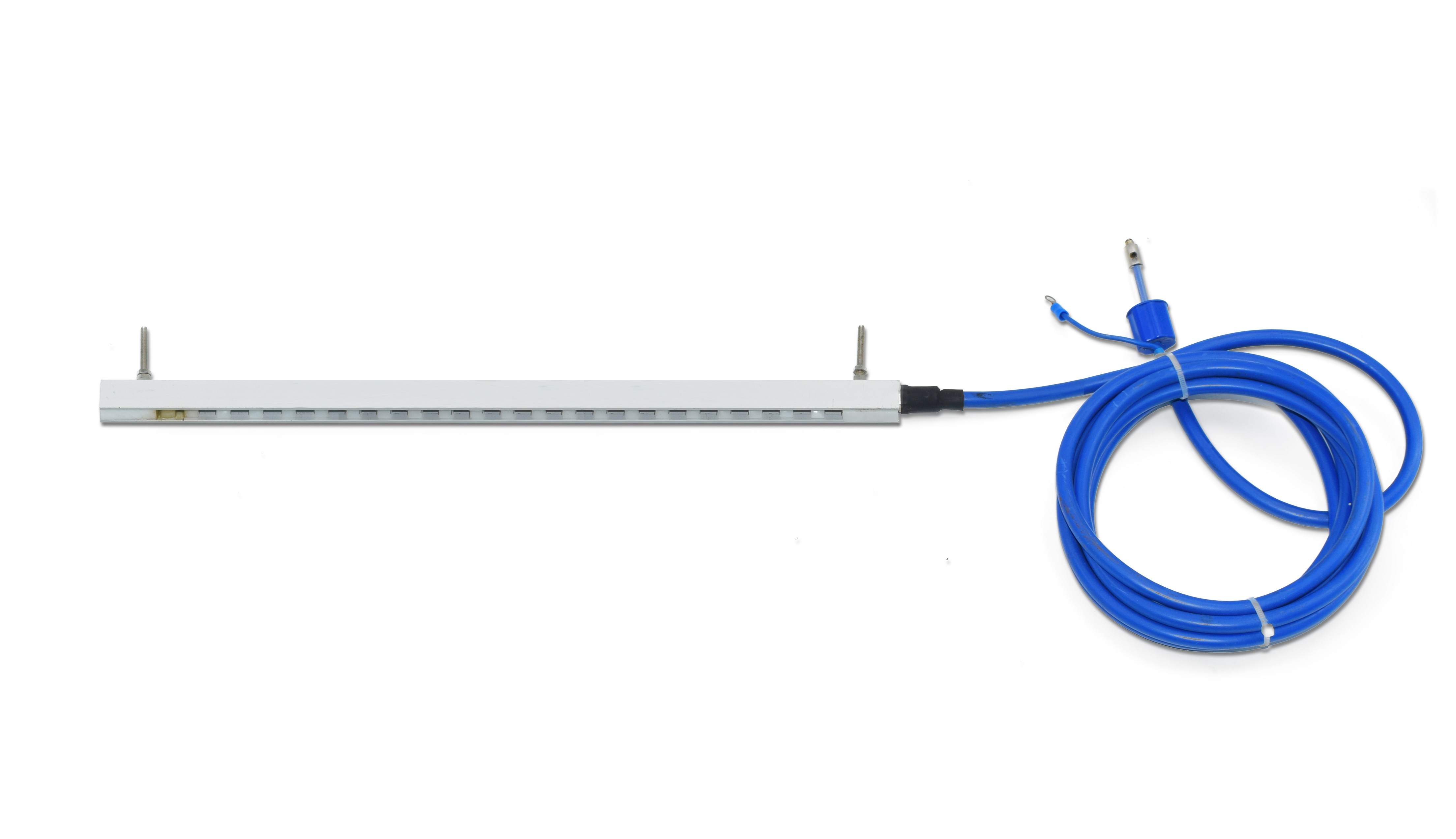

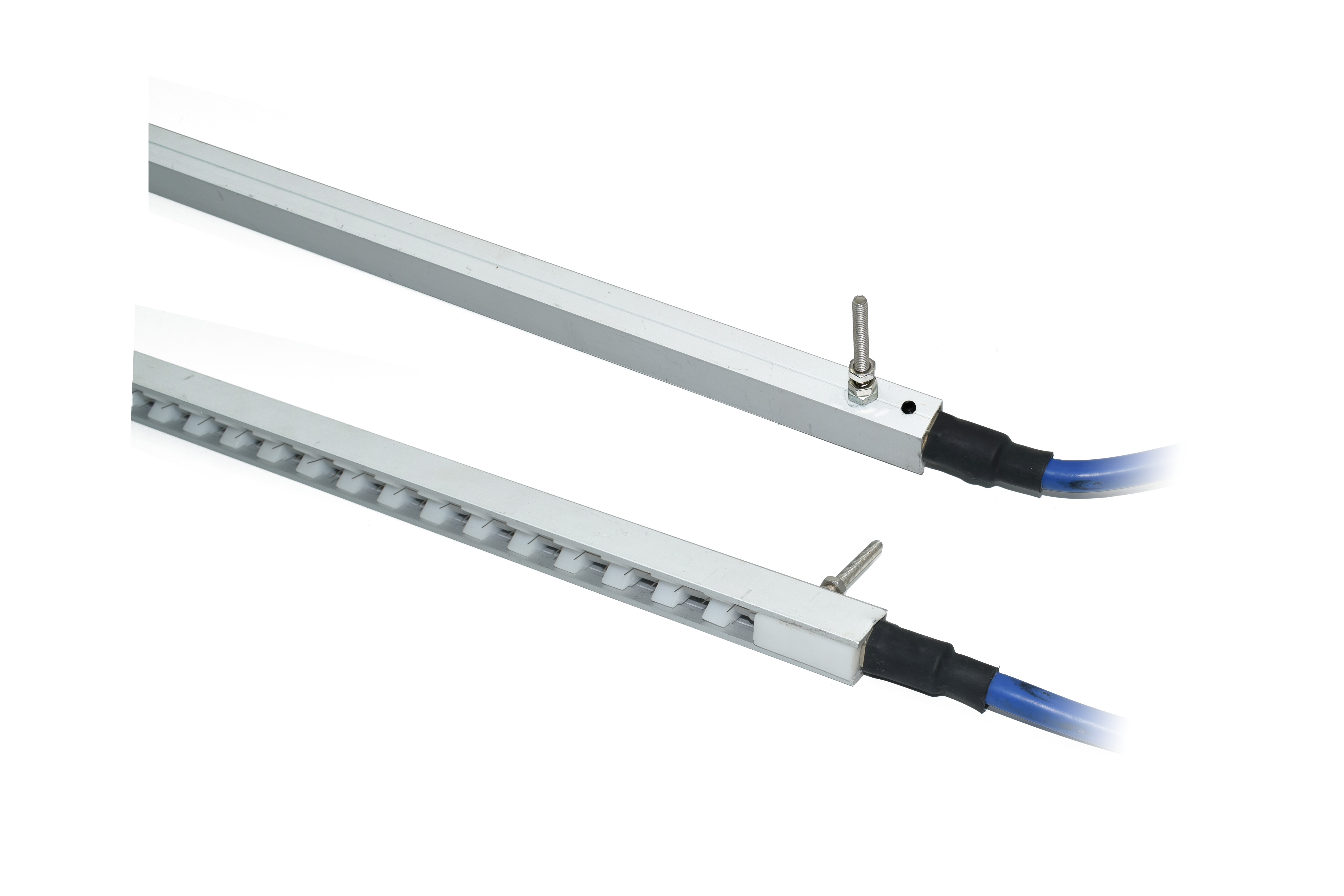

ST504A Piezoelectric Ion Bar

Customizable length: 150~3000mm

Product Features:

1. Built-in unique high air volume trachea can quickly neutralize ions

2. Aluminum alloy shell, because of its small shape, is suitable for being placed in a narrow space

3. Commonly used for mechanical equipment pre-installation: no electric shock design

4. Built-in unique air pipe with high air volume can neutralize static electricity quickly.

5. It can only be used with ST403A high-voltage power supply (it needs to be purchased

separately)

6. Silver shell

7. Without wind

Model Parameter	ST403A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	95W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	7.0KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST504A
Ion generation mode	Piezoelectric type
Input voltage	110V~220V 50~60HZ
Power consumption	110W
Output voltage	7.0KV
Output when abnormal	7.5KV
Gas consumption	0.05m3/min within 600mm of bar length
Neutralization time	< 2s
Measure	180mm(H)×140mm(W)×150mm~3000mm(L)
Supply pressure range	Under 0.5Mpa
Ionization equilibrium	<±100V
Work environment	Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation)

Product Size
