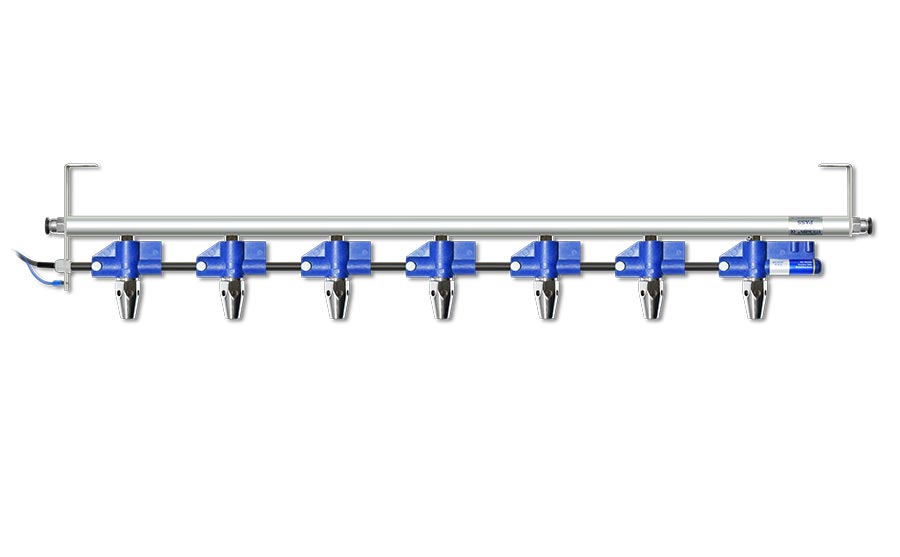

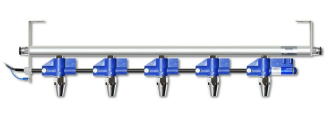

ST202FC Piezoelectric Series Ion Nozzle

Customizable length: 200~2000mm

Product Features:

1. Unique discharge structure design, used for surface treatment process production.

2. Stickon row nozzles are suitable for different power dissipation distances and realize faster power dissipation

speed.

3. It has anti-electric shock function to prevent electric shock injury to human body.

4. Through CE certification, external electromagnetic interference can be effectively prevented from affecting the

normal operation of the exhaust nozzle.

5. With electromagnetic protection function, it will not cause electromagnetic interference to other equipment and

make it unable to work normally.

6. The product contains 7 length specifications to meet the requirements of different ionization ranges

7. Electrostatic dust removal effect, adjustable throttle valve, arbitrary adjustment of air volume, strong wind

power.

8. It needs to be used with Stickon ST401A high voltage generator

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202FC
Ion generation mode	Piezoelectric type
Material of discharge needle	Tungsten steel
Host material	Stainless steel/aluminum profile/ABS fireproof engineering plastic
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameterΦ8
Body size	200mm~2000mm (Customizable length)
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	The air consumption of a single nozzle is 0.08m³/min (the air consumption increases with each additional nozzle, subject to the internal technical data)
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

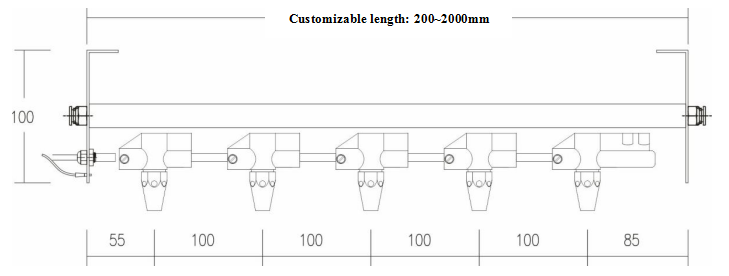

Product Size
