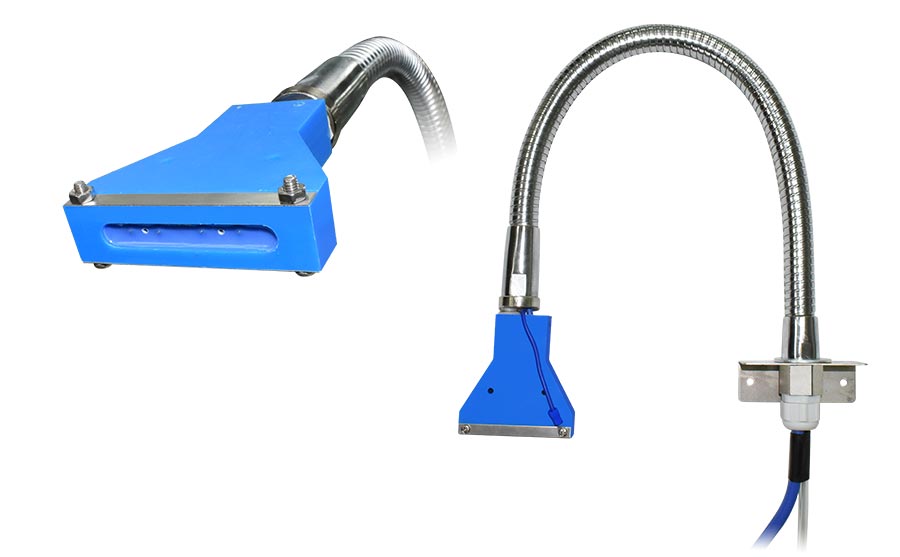

ST202G Sector Ion Wind Snake Nozzle

Product Features:

1. It can be directly placed in various working areas and set to automatic control, and the action distance of ions

can reach 1 meter

2. Equipped with fan-shaped air outlet nozzle, it can adjust the direction universally and is convenient to use. It is

an electrostatic eliminator with excellent performance

3. Easy installation, stable operation, strong wind speed and fast static elimination.

4. The wind nozzle is made of plastic material with good temperature resistance, which is not easy to burn out

and break

5. Stickon ST401A high-voltage generator should be equipped for integrated use, which can blow large

Workpieces

6. Outer sheath (blue bellows) can be added

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202G
Ion generation mode	Ac type
Material of discharge needle	Tungsten steel
Host material	Iron/ABS fireproof engineering plastics
Air ion supply range	10cm~18cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	570 (L)×30 (W)×80 (H) standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

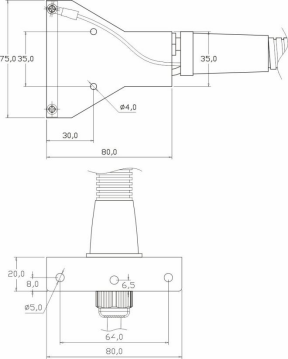

Product Size
