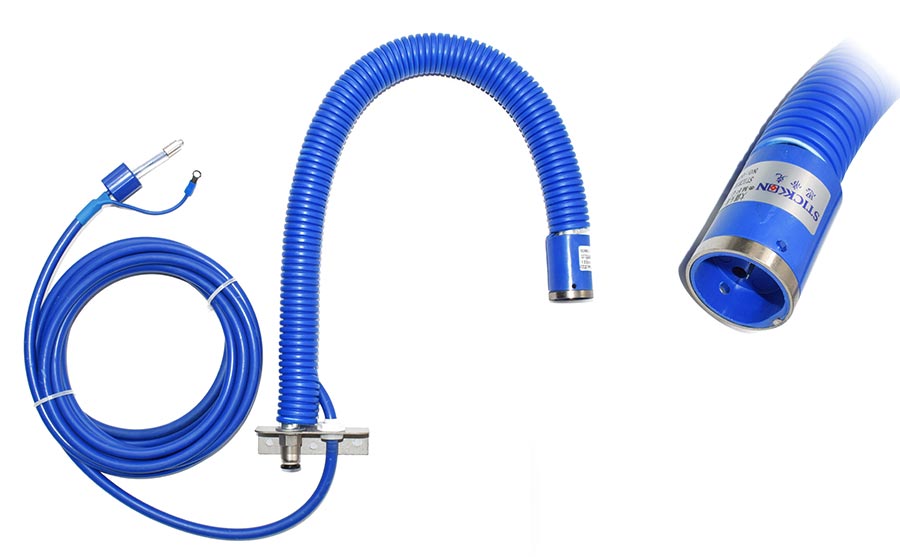

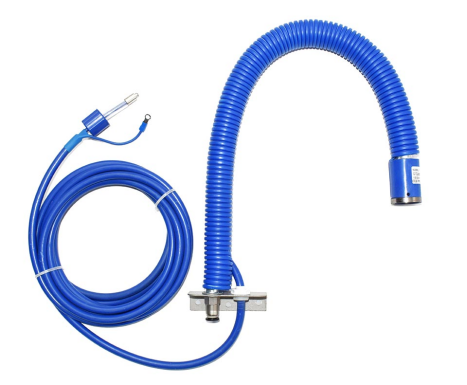

ST202H Ac Type Ion Wind Snake Nozzle With Big Round Head

Product features:

1. Quick neutralization of static electricity and good electrostatic dust removal effect

2. Ion airflow has large coverage area and small volume, which is beneficial to installation

3. The nozzle has good grounding protection function

4. The direction can be adjusted universally, which is convenient to use

5. Stickon ST401A high-voltage generator is required for integrated use

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202H
Ion generation mode	Ac type
Material of discharge needle	Tungsten steel
Host material	ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	570 (L)×30 (W)×80 (H) standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

Product Size
