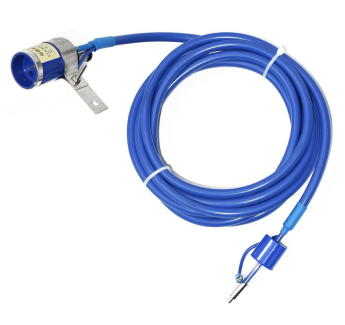

ST-2 Piezoelectric Ion Tuyere

Product features:

1. Ion airflow has large coverage area and small volume, which is beneficial to installation

2. It can be set to automatic control

3. Have good grounding protection function

4. Quick elimination of static electricity makes it easier to clean small and sensitive parts and materials

5. No arc, safety and high efficiency

6. Stickon ST403A high-voltage generator is required for integrated use

High voltage generator is required: ST403A one tow two/one tow four
Model Parameters	ST403A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	95W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	7.0KVX2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical parameter

Model	ST-2
Ion generation mode	Piezoelectric type
Material of discharge needle	Tungsten steel
Host material	ABS fireproof engineering plastics
Air ion supply range	8cm~15cm (single tuyere)
Air inlet pipe	Duct with inner diameter Φ 8
Body size	75(L)×32(W)×72(H) Standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min (under 3kg air pressure)
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

Product Size
