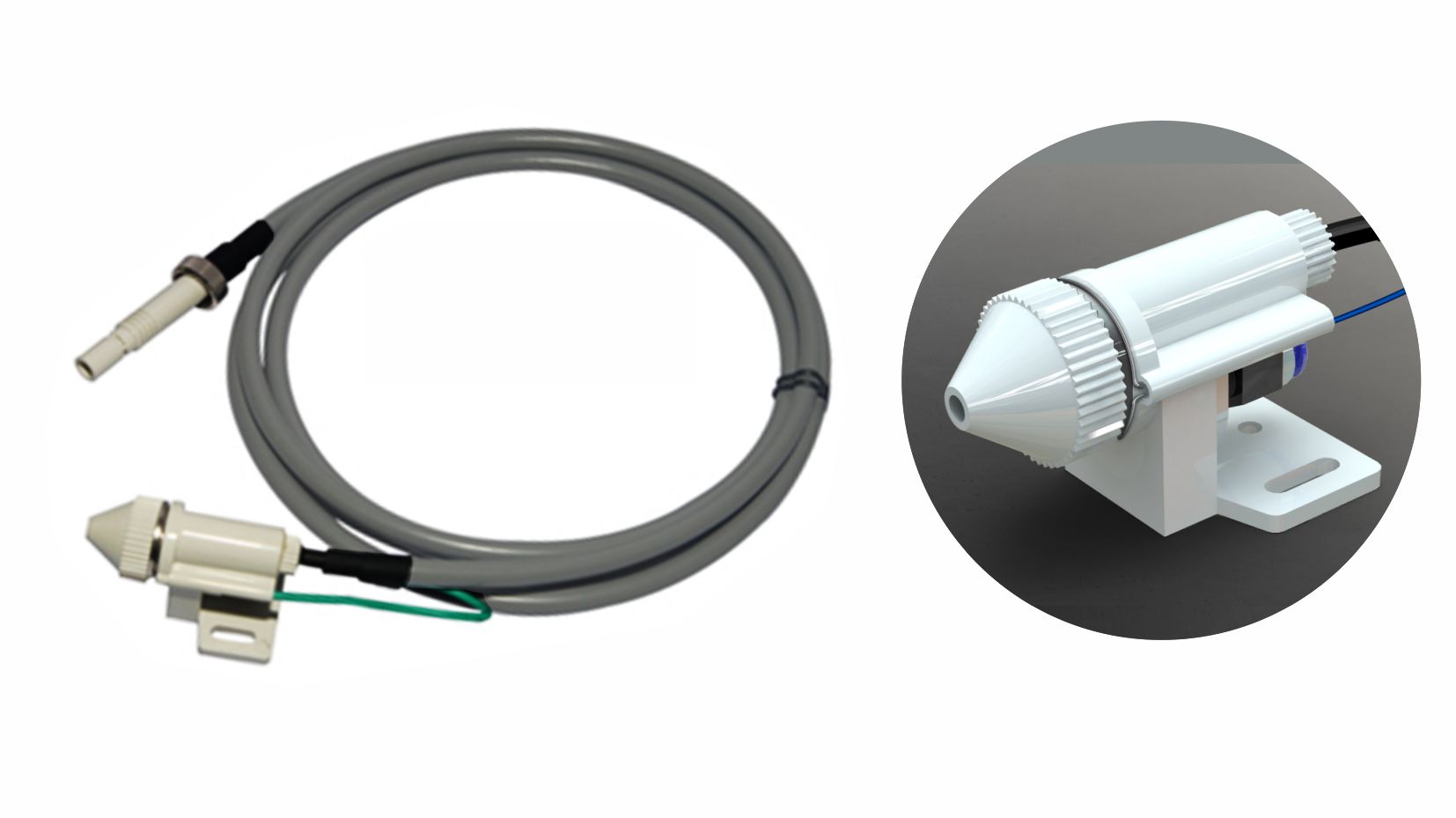

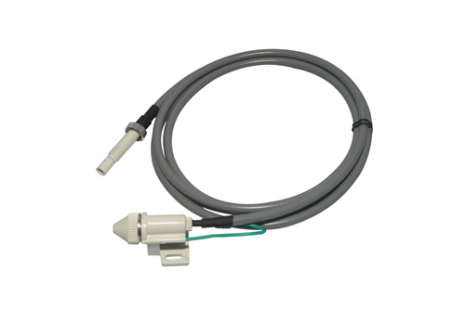

ST-5 Piezoelectric Ion Nozzle
ST-5 Piezoelectric Ion Nozzle
Product Features:
1. Ac type applied voltage type static removing device
2. Electrostatic removing electrode specially used for film, sheet and paper
3. The structure design with low electric shock is adopted
4. The best setting distance of rod electrode is 30~50mm from charged object
5. The maximum response speed for static objects is 120m/ min (if it exceeds 120m/ min, multiple responses can
be set, please consult the business department for specifications)
Technical Parameter
Model | ST-5 |
Ion generation mode | Piezoelectric type |
Material of discharge needle | Tungsten steel |
Host material | ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm (single nozzle) |
Air inlet pipe | Duct with inner diameter Φ 6 |
Body size | 62 (L)×46 (W)×41 (H) Standard cable length 2m |
Accessories | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |

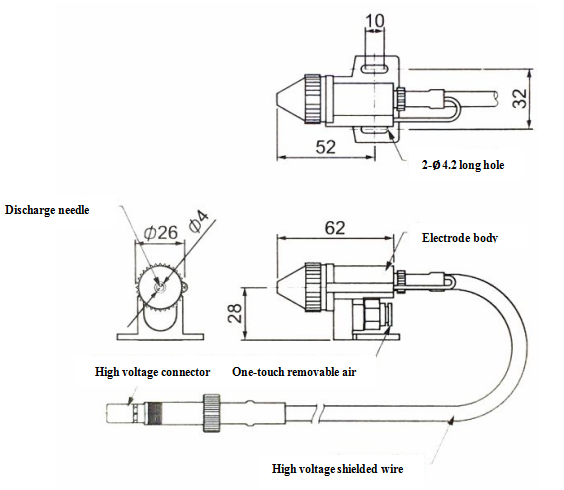

Product Size
