ST201F Rectifier Type Ion Nozzle

Product Features:

1. Adjustable ion nozzle is a kind of fixed special equipment for eliminating static electricity

2. The high-voltage generator needle is designed as "no electric shock" high-voltage discharge after special

process treatment

3. It is a static electricity eliminating nozzle with excellent performance

4. The unique super-strong adjustable wind can immediately remove stubborn dust particles on the surface of

Objects

5. At the same time, static electricity on the surface of the object can be well eliminated.

6. High air pressure can directly adjust the wind force

7. Stickon ST402A high-voltage generator is required for integrated use

Model Parameter	ST402A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	85W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	5.6KV×2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST201F
Ion generation mode	Rectifier type
Material of discharge needle	Wolfram steel
Host material	Stainless steel/ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter φ 8
Body size	The length of 88mm(L)×30mm(W)×61mm(H) standard cable is 2.5M
Appendix	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.08m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

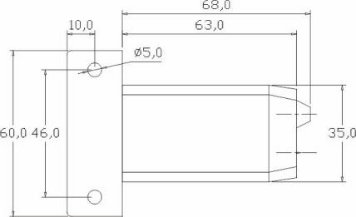

Product Size
