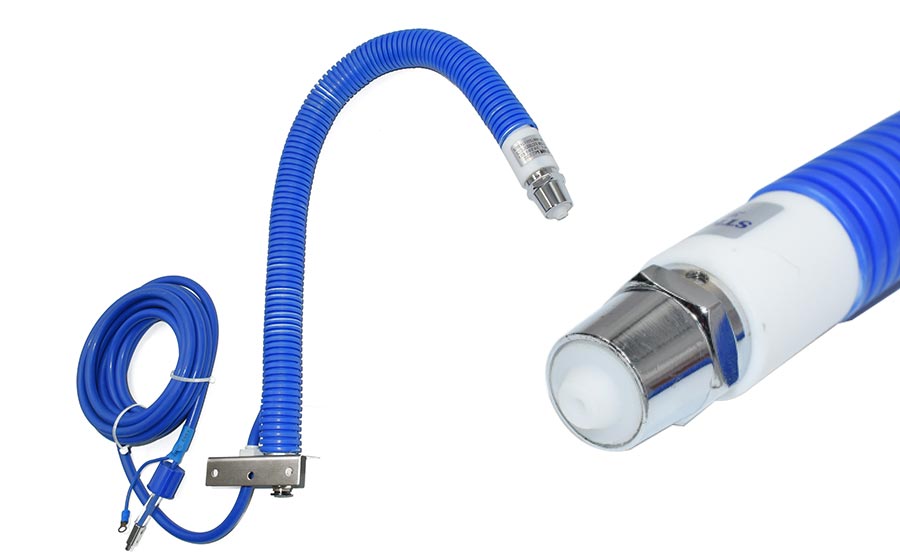

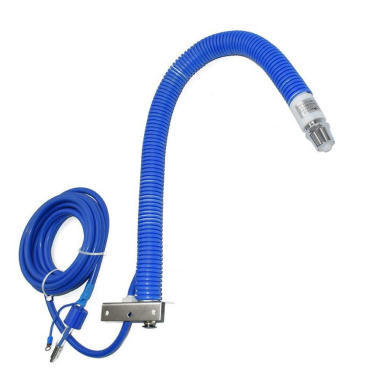

ST202C Ion Wind Snake Nozzle

Product features:

1. Ion air nozzle can be equipped with foot switch to control ion air flow

2. Convenient movement and installation, universal direction adjustment and convenient use

3. Ion airflow covers a large area

4. The snake tube can swing at an ideal angle at will

5. It needs to be used with Stickon ST401A high voltage generator

High voltage generator is required: ST402A one tow two/one tow four
Model Parameters	ST402A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	85W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	5.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202C
Ion generation mode	Ac type
Material of discharge needle	Tungsten steel
Host material	Stainless steel/ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	550mm (L)×30mm (W)×80mm (H) Standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

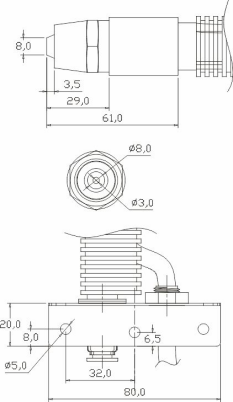

Product Size
