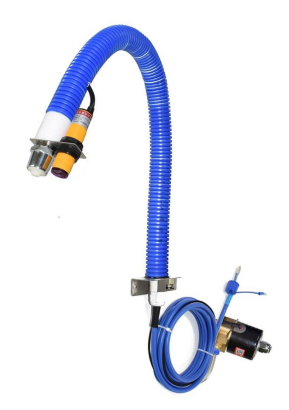

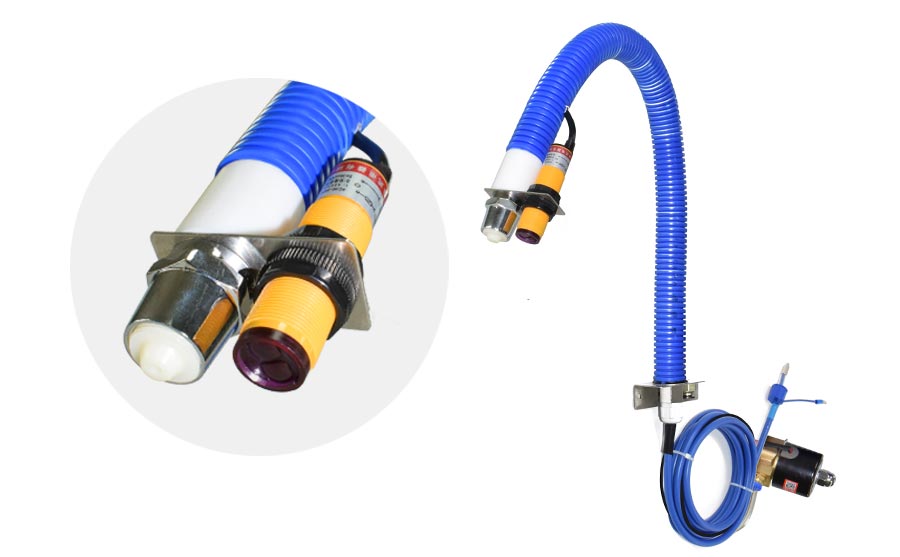

ST202CY Infrared Induction Ion Air Snake Nozzle

Product Features:

1. Inductive ion nozzle controls air flow through photoelectric switch. The sensing distance is adjustable.

When no object passes through the nozzle, the sensing switch will automatically turn off the compressed

gas, reducing unnecessary waste of compressed gas and noise

2. The inductive ion air nozzle can be matched with a foot switch to control compressed air, which can

adjust the direction universally and is convenient to use.

3. Ion nozzle is equipped with photoelectric induction control; Its unique photoelectric induction

automatic air outlet

4. When the distance between the object and the ion nozzle is 300MM (the distance can be adjusted in the

range of 10-30CM), the ion nozzle will start immediately

5. Strong and adjustable air volume can immediately remove stubborn dust particles on the surface of

objects, and at the same time, it can well eliminate static electricity on the surface of objects

6. Stickon ST401A high-voltage generator is required for integrated use

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202CY
Ion generation mode	Ac type
Material of discharge needle	Tungsten steel
Host material	Stainless steel/ABS fireproof engineering plastics
Air ion supply range	8cm~15cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	550mm (L)×30mm (W)×80mm (H) Standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

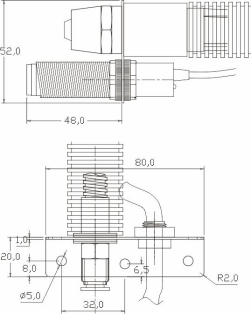

Product Size
