ST202E Sector Ion Nozzle

Product Features:

1. AC-type applied voltage electrostatic discharge device is generally used for electrostatic discharge electrodes

of film, sheet and paper

2. The structure design with low electric shock sensitivity is adopted, and the best distance between rod electrode

and charged object is 30 ~ 50 mm.

3. The maximum response speed for static objects is 120m/ min (if it exceeds 120m/ min, multiple responses can

be set, please consult the business department for specifications)

4. Rod type, suitable for small space (standard cable length: 2.5m), small (round) and suitable for setting in small

Space

5. Nozzle type, flat type, adopts flat nozzle, and has the effect of strong dust removal with laminar air

6. Ion airflow covers a large area

7. Stickon ST401A high-voltage generator is required for integrated use

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion- proof environment	No

Technical Parameter

Model	ST202E
Ion generation mode	Ac type
Material of discharge needle	Tungsten steel
Host material	ABS fireproof engineering plastics
Air ion supply range	10cm~18cm
Air inlet pipe	Duct with inner diameter Φ 8
Body size	97mm (L)×25mm (W)×75mm (H) Standard cable length 2.5M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

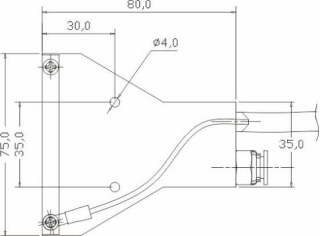

Product Size
