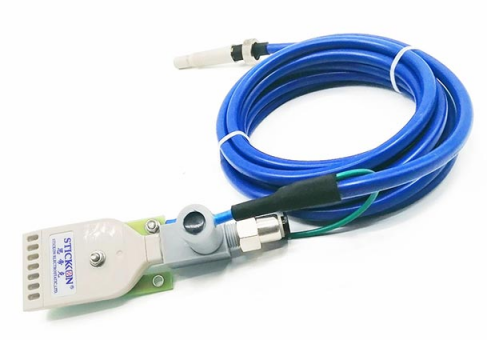

ST202F Flat Ion Nozzle

Product Description:

Air ion electrode can remove static electricity and dust. Please choose to use it according to the purpose and use.

The flat nozzle type air ion dust removal is more effective.

Nozzle type, flat type, adopts flat nozzle, and has strong dust removal effect with laminar air.

Product Features:

1. AC-type applied voltage electrostatic discharge device is generally used for electrostatic discharge electrodes

of film, sheet and paper

2. The structure design with low electric shock inductance is adopted, and the standard high-voltage cable length

is 1 m

3. The best setting distance of rod electrode is 30~50mm from charged object

4. The maximum response speed to electrostatic objects is 120m/ min. (If it exceeds 120m/ min, more than one

can be set to deal with it. Please consult the business department for relevant specifications.)

5. Stickon ST401A high-voltage generator is required for integrated use

High voltage generator is required: ST401A one tow two/one tow four
Model Parameters	ST401A
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A
Power	75W
Operating temperature range	0-50℃
Weight	2.25kg
Length of high voltage wire	1.5m
Output voltage	4.6KV X 2 or 4
Output current	4.5mA
Can it be used in explosion-proof environment	No

Technical Parameter

Model	ST202F
Ion generation mode	Piezoelectric type
Material of discharge needle	Tungsten steel
Host material	ABS fireproof engineering plastics
Air ion supply range	10cm~18cm
Air inlet pipe	Duct with inner diameterΦ6
Body size	136mm (L)×42mm (W)×50mm (H) standard cable length 1M
Accessories	Instructions/warranty cards/certificates
Performance	Static removal time < 1.5S
Air consumption	0.09m³/min
Noise	56DB
Ozone production	< 0.02ppm or less (measuring distance 200mm)

Product Size
