ST201E Stainless Steel Bottom Box Metal Head Ion Wind Snake Nozzle
ST201E Stainless Steel Bottom Box Metal Head Ion Wind Snake Nozzle
Product features:
1. This product is customized for professional use in coating industry
2. Ion tuyere can be equipped with foot switch to control compressed gas and reduce unnecessary waste of
compressed gas and noise
3. Stickon ST401A high-voltage generator is required for integrated use
4. Outer sheath (blue bellows) can be added
Model Parameter | ST401A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 75W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 4.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST201E |
Ion generation mode | Rectifier type, no electric shock |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter φ 8 |
Body size | The length of 99mm(L)×100mm(W)×900mm(H) standard cable is 2.5M |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |

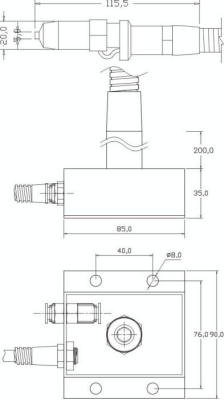

Product Size
