Series ST403A High Voltage Ion Generator

Product Description

The voltages are 4.6 KV, 5.6KV and 7.0KV respectively.

It can provide 2/4 groups of high voltage power output for ion air gun, ion air nozzle, ion air

snake, ion air rod, etc.;

The electrostatic eliminator can be conveniently connected according to the identification and

installation instructions;

Stickon high voltage power supply has short circuit protection function, which is safe and

convenient.

Product Features

1. Low power consumption and high energy

2. Work with high voltage and low current

3. Safety, reliability and excellent performance

4. Convenient operation and strong environmental applicability

5. Plug-in interface, easy to install

6. With energy limiting element to ensure stable output

One-to-Four Series:

Product Parameter

	ST401A one drag four	ST402A one drag four	ST403A one drag four
Operating power supply	110V/60Hz or 220V/50Hz
Consumption current	0.23A or 0.12A	0.23A or 0.12A	0.23A or 0.12A
Power	95W	105W	115W
Operating temperature range	0-50℃
Weight	2.65kg
Length of high voltage wire	1.5m
Output voltage	4.6KV×4	5.6KV×4	7.0KV×4
Output current	4.5mA
Can it be used in explosion-proof environment	No

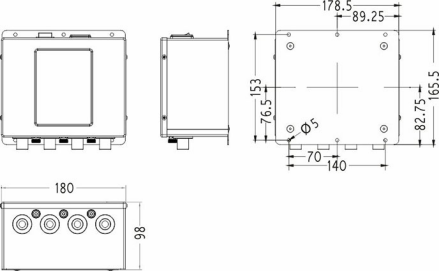

One-to-Four Series Appearance Dimensions
