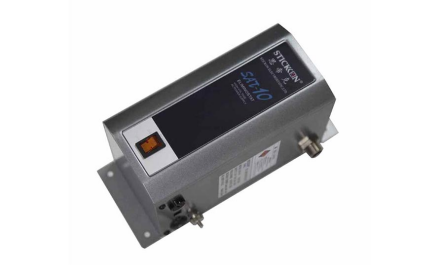

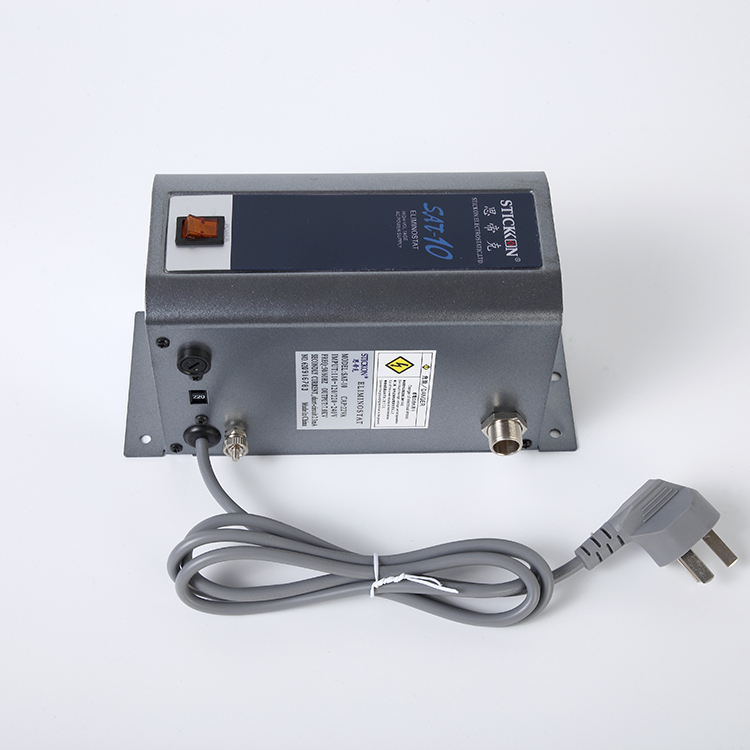

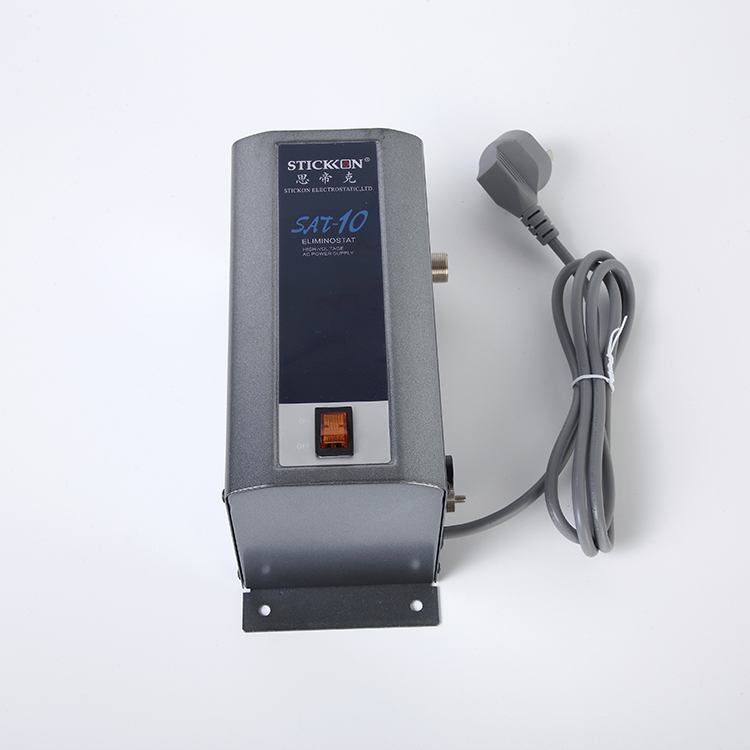

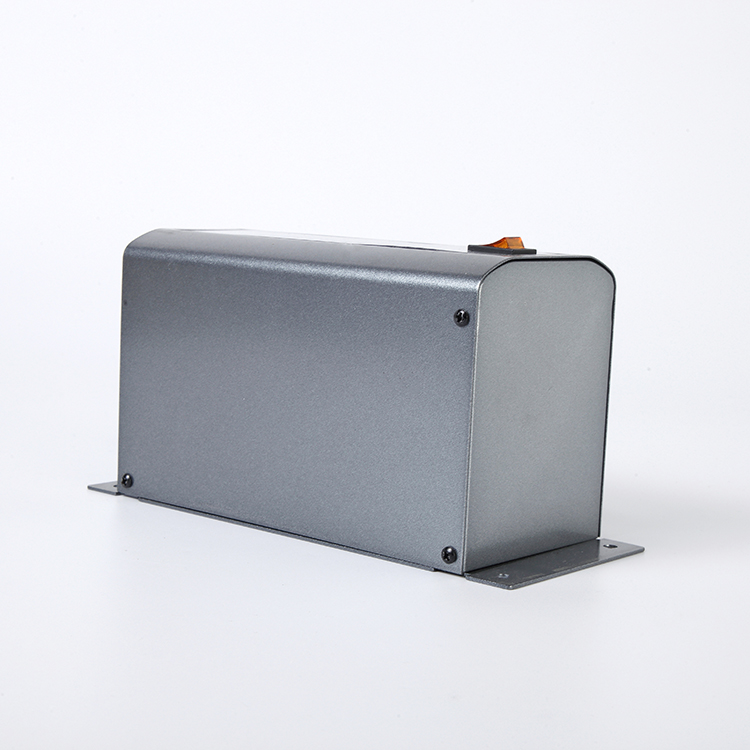

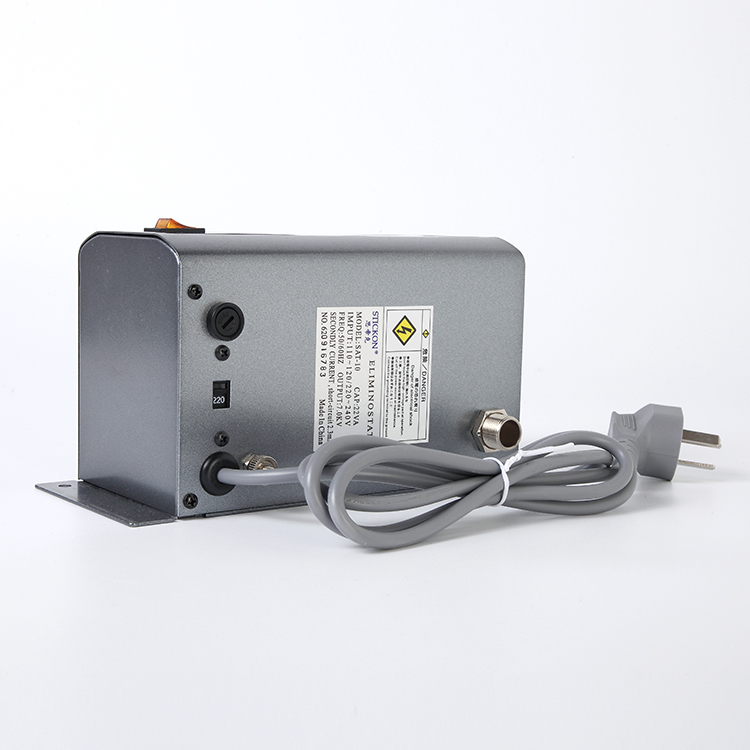

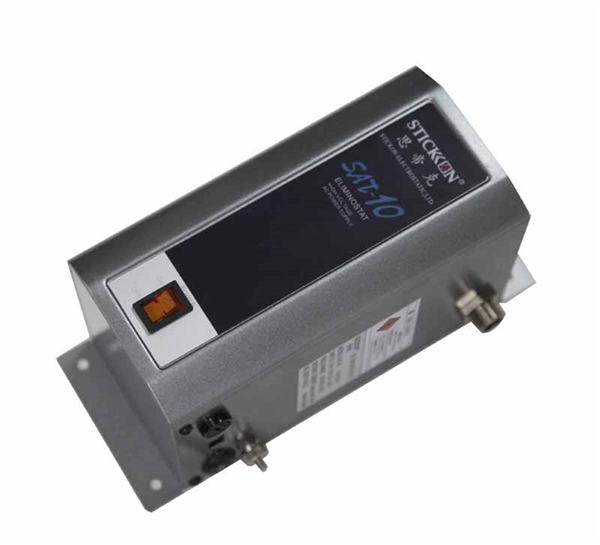

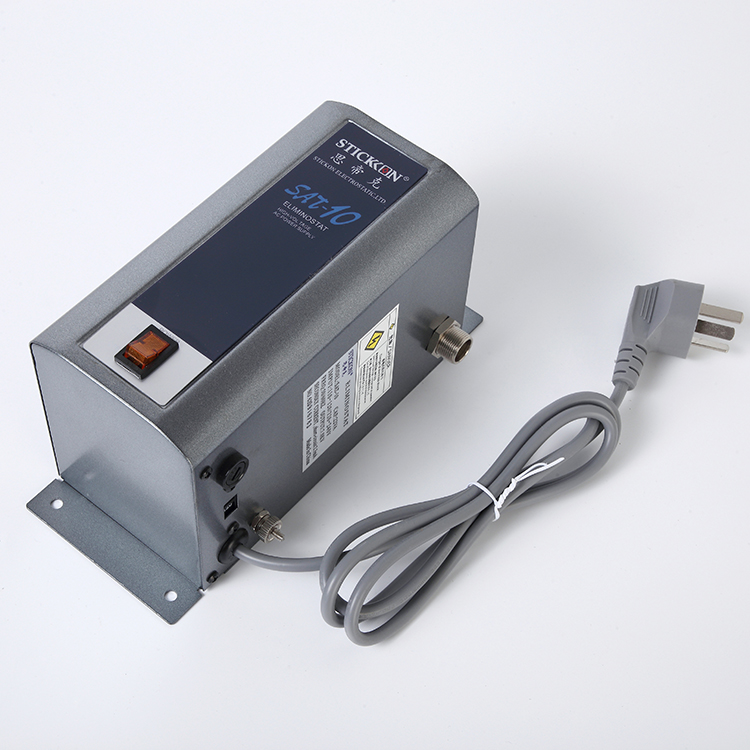

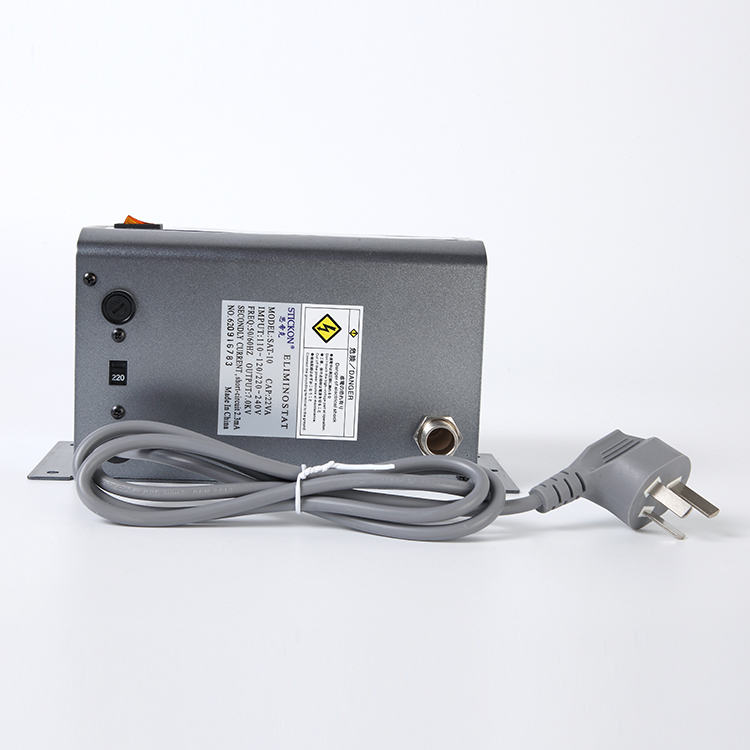

SAT-10 High Voltage Ion Generator
SAT-10 High Voltage Ion Generator
Product Description
The voltage is 7.0 KV.
It can provide one or two sets of high voltage power output for ion air gun, ion air nozzle, ion air snake and anti-static net;
The electrostatic eliminator can be conveniently connected according to the identification and installation instructions;
Stickon high voltage power supply has short circuit protection function, which is safe and convenient.
Product Features
1. Low power consumption and high energy
2. Work with high voltage and low current
3. Safety, reliability and excellent performance
4. Convenient operation and strong environmental applicability
5. Plug-in interface, easy to install
6. With energy limiting element to ensure stable output
Product Parameter
High voltage ion generator | One to one | One to two |
Operating power supply | 110V/60Hz or 220V/50Hz | |
Consumption current | 0.23A or 0.12A | |
Operating temperature range | 0-50°C | |
Power | 130W | |
Weight | 3.65kg | |
Length of high voltage wire | 1.5m | |
Output voltage (optional) | 7. 0KVx 1 | 7. OKVx 2 |
Output current | 4.5mA | |
Can it be used in explosion-proof environment | No | |

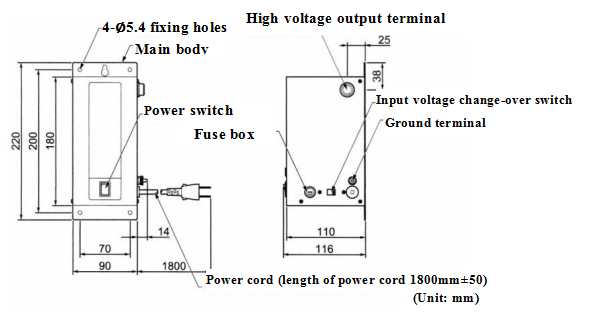

Product Size:

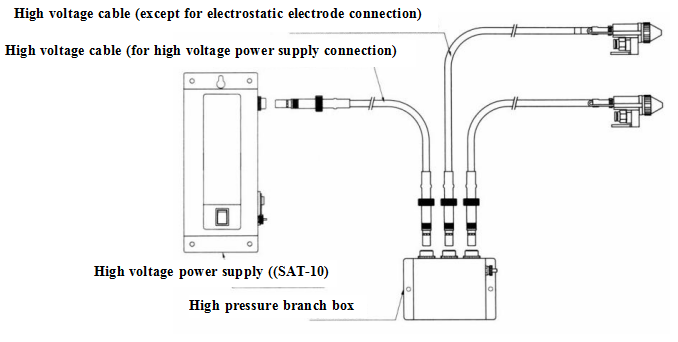

Example of Connection of Static Eliminator:
Please Set the System According to the Following Formula:
SAT-1 1, SAT-10 | [Electrode total length]+[cable total length ]≤8m |
SAT-20, SAT-30 | [Electrode total length ]≤10m+[cable total length ]≤12m |
* According to the branch box is 1m, AP-5, AG-5, the electrode length of FAPS-GP is 0.5m
* When the length exceeds the rated length, an overcurrent alarm may appear when the SAT power supply is turned on. Please confirm the specified length before importing.
