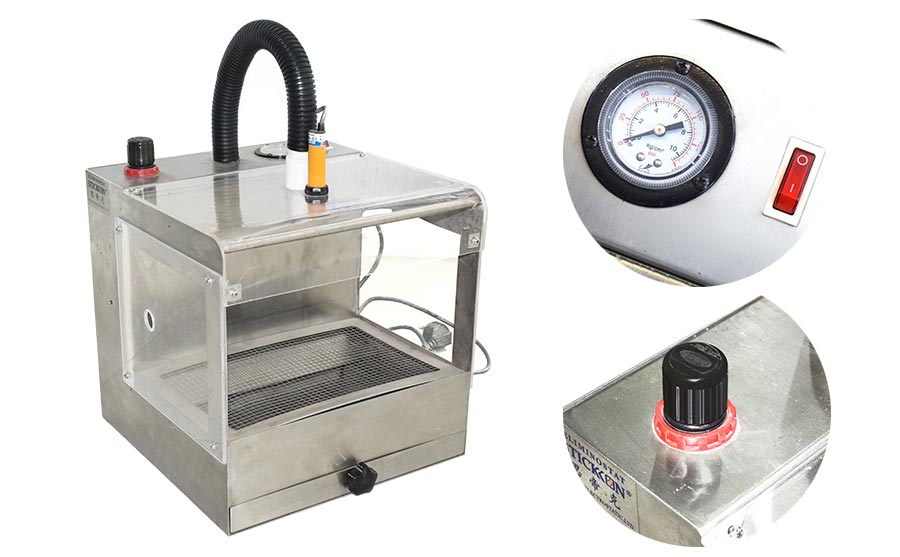

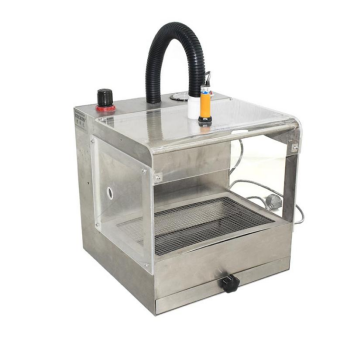

ST108 Electrostatic Removal And Dust Removal Box

Method of application

Send the object into the working area. Under the induction of infrared sensor, the high-pressure airflow blows

the positive and negative ions to the surface of the object quickly to neutralize the static electricity on the surface

of the object. At the same time, the high-speed airflow can blow off the dust adsorbed by static electricity and

drop it into the negative pressure vacuum cleaner below through the steel mesh.

Product specifications can be customized.

Product features:

1. Good electrostatic and dust removal effect, with dust collection device

2. The gas pressure can be adjusted, and the photoelectric switch controls the gas pressure

3. Small, flexible and transparent window is convenient for observation

4. Outer box material: stainless steel, plexiglass

5. The photoelectric switch in the middle can control the gas switch of the ion wind rod and the two air nozzles in

the middle at the same time

Technical parameter

Input voltage	220V / 50HZ
Consumption current	≤0.4A
Working temperature	0~50℃
Static removal time	<3s
Main body size	Within 300(L)×300(w) ×300(H)
Weight	9 kg
Sheathing material	Stainless steel
Appendix	Operating instructions, test reports, certificates and warranty cards
Accessory part	High frequency DC ion tuyere ST-6, photoelectric switch

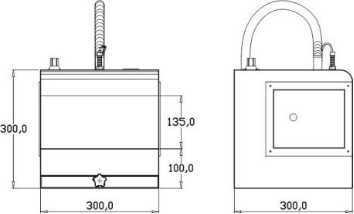

Product size

Product accessories
