ST109 High Power Ion Wind Drum
ST109 High Power Ion Wind Drum
Product overview
The fan with built-in strong wind power has strong wind power and large airflow coverage area,
which can effectively eliminate a large amount of static charges generated in the production process (such
as cutting and bending), plastic parts transportation and packaging process, and at the same time, the
strong wind power can eliminate dust attracted by static electricity on objects.
Product features:
1. Neutralize static electricity quickly
2. Ion airflow covers a large area
3. Wide wind power adjustment range
4. Clean with ion emitter
5. Ionization indicator
6. The fan has good grounding protection
Technical parameter
Input voltage | 220V -380V 50/60HZ 3phasc |
Consumption current | 2.0A or 1.1A |
Working temperature | 0℃~50℃ |
Built-in transformer | 5.6KV |
Outline dimension | 547mm (length) ×360mm (width) ×230mm (height) |
Weight | 17.5kg |
Air quantity | 350~430CFM |
Static removal time | < 1 sec(Fan space high) |
Airflow area | 60cm x 300cm |
Static removal time | (5000V to 500V≤0.6s, distance 30cm) |
Ion balance degree | Below ±30V (when leaving the factory) |

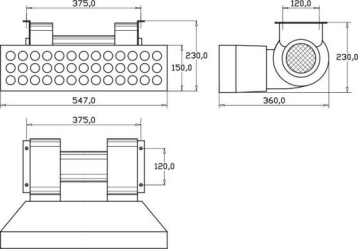

Product size
