ST102B Table Type Double-Head AC Ion Fan
Product features:
1. Automatic ion balance system, ion balance: within 0±10v

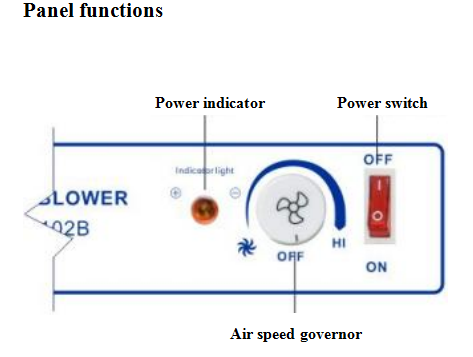

2. Equipped with power-off operation indicator light
3. Special tungsten alloy discharge needle, long-term use without wear and tear
4. The loading and unloading of the front windshield is very simple, and the cleaning of the electrodes is very
Convenient
5. Using piezoelectric high-voltage power supply, it is light in weight, small in size, free of electromagnetic
interference and safe in use
6. Heating network device can be added (optional)
Technical parameter
Input voltage | AC110v~220V 50 / 60HZ |
Capacity | 36VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 45~110CFM |
Ozone generation | Under 0.006ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, Ambient humidity: 15~85%RH (no condensation) |
Filter | Prefilter stage |
Output signal | Without |

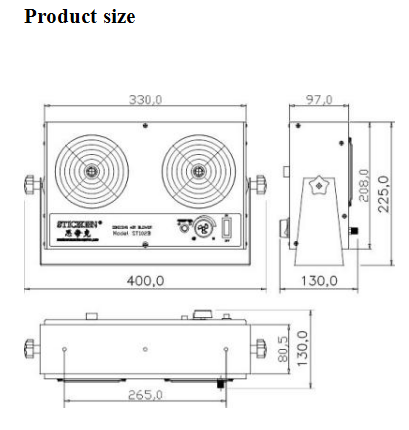

Main body size | 400mm(L)×130mm(W)×225mm(H) (including bracket) |
Weight | 4.35kg |
Noise | 59dB(A) distance 1m |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |

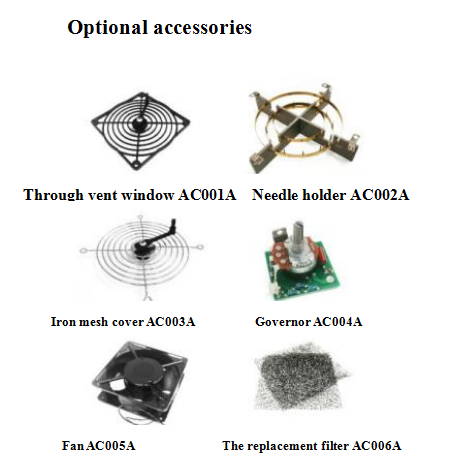

Accessory part | Pass-through vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan AC005A and replacement filter AC006A |

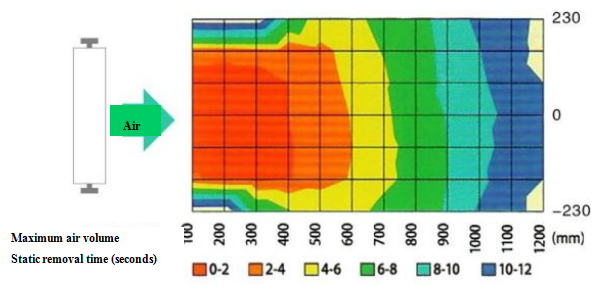

Electrostatic removal area
