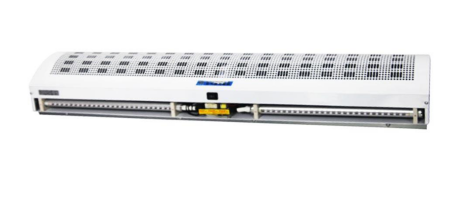

ST107 The Latest Split Ion Air Curtain Machine
Product features:
1. High-efficiency static removal wind blows to human body, which can quickly eliminate a large
number of dust particles and static electricity brought by people entering and leaving, and prevent
outdoor air and static electricity from polluting clean areas
2. The fuselage is made of 1.5mm aluminum alloy plate, and the surface is electrostatically blister
3. Adopt high-efficiency cross-flow fan and drum-type blades, with strong wind force, wind
speed ≥10m/s, and quick neutralization of static electricity
4. The fuselage is made of 1.5mm aluminum alloy plate, and the surface is electrostatically blister
5. High power, large area covered by ion airflow, no blind area for electrostatic and dust removal
Modular design, easy maintenance
6. Installation position: installed above the door of the passage
7. Infrared induction full-automatic air outlet (must be equipped separately)
High Voltage Generator is Required:
ST402A One for Two/One for Four
Model Parameter | ST402A |
Operating power supply | 110V/60Hz or 220V/ 50Hz |
Consumption current | 0.23A or 0. 12A |
Power | 85W |
Operating temperature range | 0-50°C |
Weight | 2.25kg |
Length of high voltage wire | 1. 5m |
Output voltage | 5.6KVX2 or4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical parameter
Input voltage | AC110V~220V 50 / 60HZ |
Capacity | 110VA |
Output voltage | 5.6KV |
Ionic equilibrium | Under ±100V (when leaving the factory) |
Air quantity | 2650CFM |
Ozone generation | Under 0.004ppm (distance 150mm) |
Work environment | Ambient temperature: 0 ~ 40℃, ambient humidity: 15~85%RH (no condensation) |
Filter | Without |
Output signal | Without |
Main body size | 600/900/1200/1500/1800/1900mm(L) × 235mm (W) × 230mm (H) |
Weight | 13.5 kg |
Noise | 66dB(A) (distance 1m) |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |

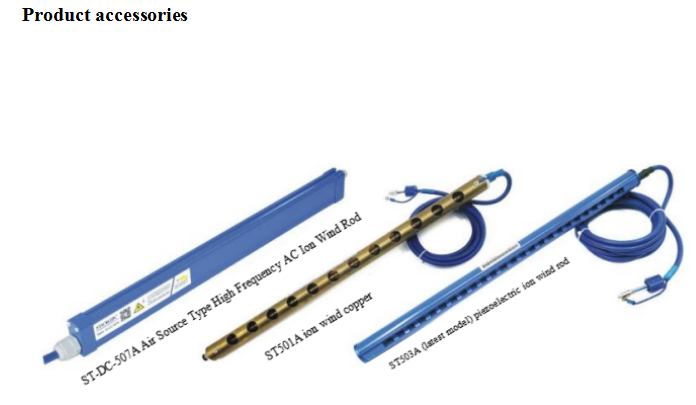

Attachment | ST501A ion wind copper rod, ST503A (latest model) piezoelectric ion wind rod, ST-DC-507A air source high frequency AC ion wind rod high voltage generator ST402A-. tow two/tow four |
Product size
