ST103BB Stainless Steel Table Type Three-Head Ac Ion Fan
Product Features:
1. The blowing range of the three-head fan is wider
2. Under the condition of high anti-corrosion requirements, when the iron shell fan does not meet the
requirements, it is necessary to use stainless steel fan with safe low voltage configuration and strict safety
protection device to ensure more reliable use
3. When corrosive gas is introduced, stainless steel fan has stronger corrosion resistance than ordinary fan
4. Compared with ordinary fans, stainless steel fans can not only meet the requirements of ventilation and
ventilation, but also significantly prolong the service life of equipment
5. Quickly eliminate static electricity, the ion balance voltage is 0 V±10 V, and the wind speed can be
continuously adjusted
6. Heating network device can be added (optional)
Technical Parameter
Input voltage | AC110v~220V 50/60HZ |
Capacity | 46VA |
Output voltage | 5.6KV |
Ionic equilibrium | Under ±10V (distance 300mm; When the factory leaves the factory) |
Static removal time | 1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory) |
Air quantity | 1.4~3.2m3/min X 3 fan |
Wind speed | 0.8~1.0m/s (300mm from the center) |
Ozone generation | Under 0.006ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) |
Filter device | Pre-filter stage |
Output signal | Without |

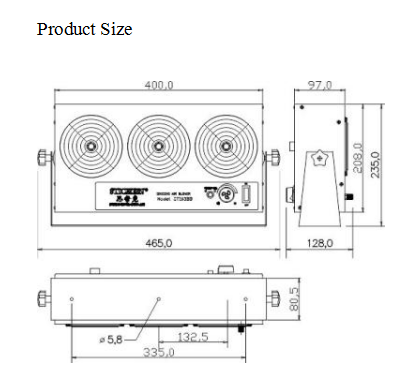

Main body size | 465mm(L)×128mm(W)×235mm(H) (including bracket) |
Noise | 66dB(A) (distance 1m) |
Sheathing material | Iron |
Attached belonging products | Operating instructions, test reports, certificates and warranty cards |

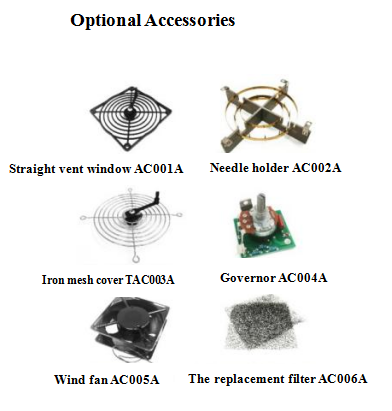

Accessory part | Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A |

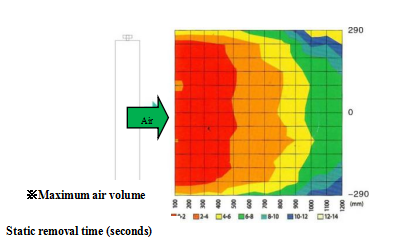

Electrostatic Removal Area
