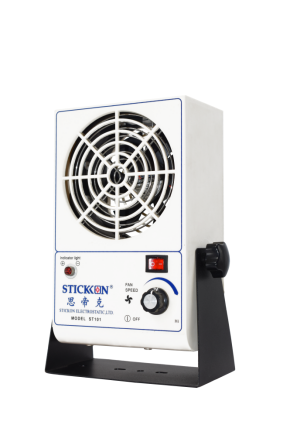

ST101C The Latest Desktop DC Ion Blower
Ionic fan action principle:
Ionic fans produce a large flow of positive and negative charges that neutralize the charge on objects. When the charge on the surface of the object is negative, it will absorb the positive
charge in the airflow, when the charge on the surface of the object is positive, it will absorb the negative charge in the airflow, so that the static electricity on the surface of the object is
neutralized, to achieve the purpose of eliminating static electricity.
Product features:
1. Large ion output and rapid elimination of static electricity
2. Flexible adjustment of wind speed (stepless adjustment of wind speed)
3. Removable front and rear masks, convenient cleaning and simple maintenance
4. Tight safety protection device
5. ABS fireproof plastic shell, compared with metal shell, the weight is reduced by more than 30%
6. Two kinds of vent windows can be selected to ensure a wider range of static electricity removal areas
7. Compared with the traditional high-frequency AC mode, the ozone generation amount is reduced
Technical parameter
Input voltage | DC24V (with AC adapter, support AC100-240V) |
Capacity | 6VA |
Output voltage | ±7000V0-p |
Ionic equilibrium | Under ±10V (300mm away, when leaving the factory) |
Air quantity | 0.7~1.2m3 /min |
Wind speed | 1.2~1.9m/s (the distance from the vent window to the center is 300mm) |
0.7~1.2m/s (wide-angle vent window is 300mm away from the center) | |
Ozone generation | Below 0.004ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0 ~ 40℃, ambient humidity: 15~ 85%RH (no condensation) |
Filter | Prefilter stage |
Abnormal output | Normal value : ON; In case of abnormal high voltage output or abnormal blower (red LED), 0FF MOS FET relay has no voltage contact output, with maximum current of 200mA and applied voltage below 30VDC |
Main body size | 192mm (L) ×90mm (W) ×251 (H)mm (including bracket) |
Weight | 1.6kg |
Noise | 51dB(A) distance 1m |
Sheathing material | ABS engineering plastic shell |
Appendix | Operating instructions, test reports, certificates and warranty cards |
Accessory part | The replacement discharge needle assembly DC012B and the replacement filter AC006A |

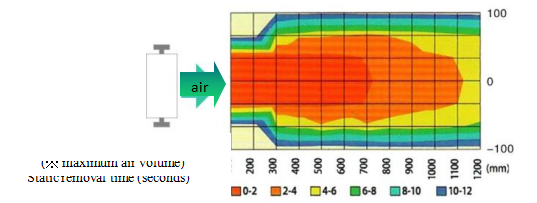

Electrostatic removal area

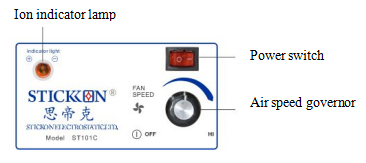

Panel functions
Product size
