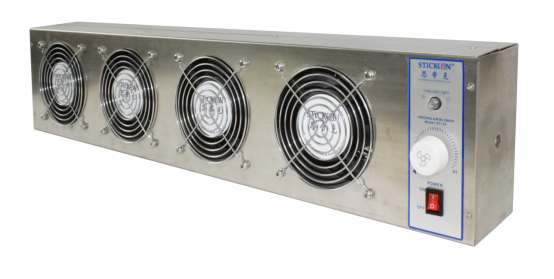

ST106A The Latest Stainless Steel Four-Head AC Ion Fan
Product Features:
1. Adjustable ion air volume
2. Optional installation of cold air heating device
3. Optional installation of filter screen
4. Ion regulator can be installed
5. Special ion needle cleaning brush is convenient for cleaning and maintenance
6. Large-scale ion wind zone with continuously adjustable wind speed
7. When corrosive gas is introduced, stainless steel fan has stronger corrosion resistance
ordinary fan
Technical Parameter
Input voltage | AC110v~220V 50/60HZ |
Capacity | 55VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Static removal time | 1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory) |
Air quantity | 1.4~3.2m3/min X 4 fan |
Wind speed | 0.8~1.0m/s (300mm from the center) |
Ozone generation | Under 0.006ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) |
Filter device | Pre-filter stage |
Output signal | Without |

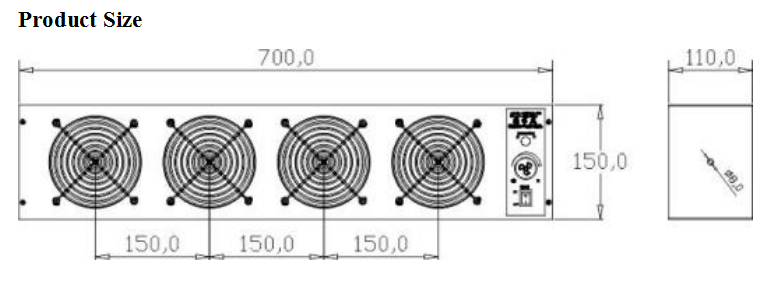

Main body size | 700mm(L)×110mm(W)×150mm(H) (including bracket) |
Weight | 5.2kg |
Noise | 66dB(A) (distance 1m) |
Sheathing material | No stainless steel |
Attached belonging products | Operating instructions, test reports, certificates and warranty cards |

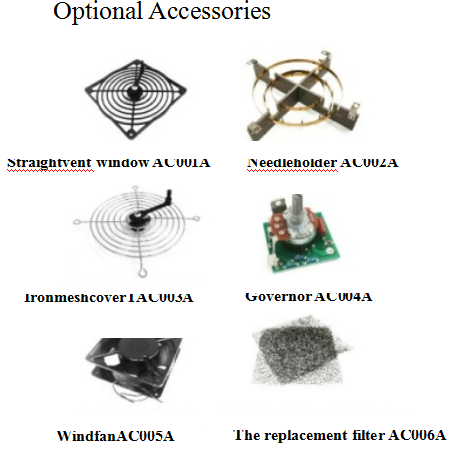

Accessory part | Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A |

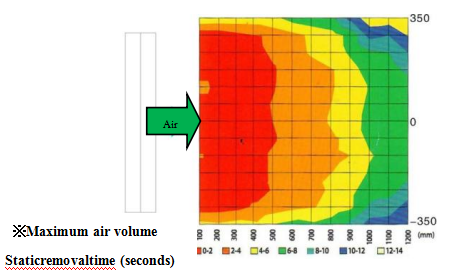

Electrostatic Removal Area
