ST302B Ac Ion Air Gun
Product Features:
1. Quick elimination of static electricity makes it easier to clean small and sensitive parts and
materials
2. Adopt inductive design, ion needle does not electrify people; Separate air flow from high
voltage line
3. The effect is good, and it must be used in the special high-voltage power supply of Stickon.
4. Ion air gun, the gun body has air volume regulator, and the gun body is made of plastic material,
which makes it feel better
4. Stickon ST401A high-voltage generator is required for integrated use
Note:
Because AC direct ignition is used, the discharge needle will electrify people. Please pay attention
to safety!
High Voltage Generator Is Required: | |
ST401A One Drag Two/One Drag Four | |
| |
Parameters Model | ST401A
|
Operating power supply | 110V/60HZ or 220V/50HZ |
Consume power supply | 0.23A or 0.12A |
Power | 75W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage cable | 1.5m |
Output voltage | 4.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST302B |
Ion generation mode | Ac type |
Material of discharge needle | Wolfram steel |
Host material | ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Inner diameterΦ8 air duct |
Body size | 260mm(L)×42mm(W)×164mm(H) standard cable length is 2.5m |
Attached belonging products | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.09m³/min |
Noise | 56DB |
Ozone production | <.02ppm or less (distance 200mm measuring distance) |

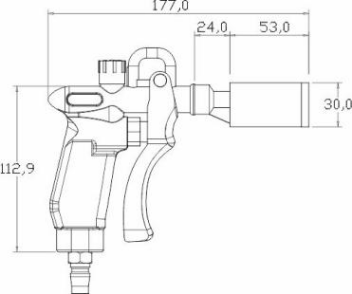

Product Size
