ST203A Ion Wind Snake
Product features:
1. Set to automatic control, the ion action distance can reach 1 meter;
2. It needs to be equipped with ST401A high-voltage generator for integrated use
3. Strong non-steel snake-shaped shell can improve product quality and life, and improve static
electricity removal effect.
4. Special large metal hose, orientation, easy deformation, stability
5. The function of controlling air flow can be increased, and photoelectric switch and foot switch
can be added
High Voltage Generator is Required: ST403A One Tow Two/One Tow Four
| |
Model Parameter | ST403A |
Operating power supply | 110V/ 60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 95W |
Operating temperature range | 0-50°C |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 7.0KV×2 or4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical parameter
Model | ST203A |
Ion generation mode | Ac type |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameterΦ 8 |
Body size | 140mm(L)×115mm(W)×600mm(H) Standard cable length 2m |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less(measuring distance 200mm) |

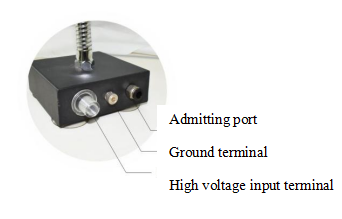

Product size
