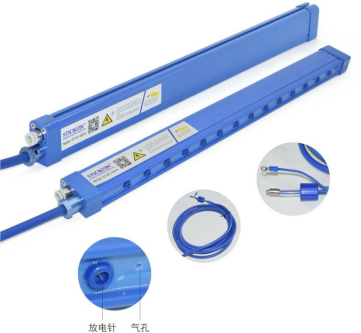

ST-DC-507A Air Source Type High Frequency AC Ion Bar

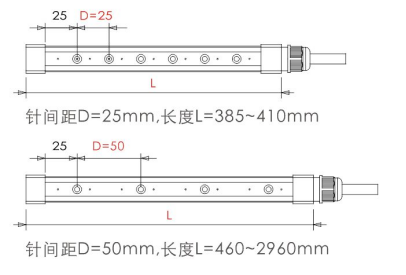

1. Needle gauge 25mm, customizable length: 385~410mm
2. Needle gauge 50mm, customizable length: 460~2960mm
Product overview
ST-DC-507A Air source type AC Ion Bar uses AC high voltage power supply, adopts special alloy
electrodes, alternately acts on coupling electrode needles through AC high voltage, and adopts AC mode to act on
electrode needles through coupling devices to generate corona discharge, ionize air molecules, generate a large
number of positive and negative air ions, and transport them to the surface of electrostatic objects through
compressed air to neutralize positive and negative electrostatic charges, thus achieving the effect of efficiently
and reliably eliminating electrostatic charges on the surface of objects.
Product features
1. With anti-electric shock function, it can prevent electric shock injury to human body
2. Through CE certification, it can effectively avoid the influence of external electromagnetic interference on the
normal operation of Ion Bar
3. With electromagnetic protection function, it will not cause electromagnetic interference to other equipment and
make it unable to work normally
Application industry
It can be widely used in electronic, semiconductor, photoelectric and other industries.
Matters need attention
Technical parameter
Product model | ST-DC-507A |
Input voltage | 220V |
Incoming current | <50mA |
Power | 75W |
Operating voltage | ±7000V |
Ion emission | High frequency AC |
Emitting electrode | SUS |
Gas consumption | 0.05 Cubic meters/minute (below 600mm) |
Discharge structure | Resistance coupling |
Extinguishing range | L * W * H: {385-410 (25mm); in needle gauge); 460-2960 (50mm in needle gauge)} * 300 * 1000mm |
Installation distance | 100→1000mm |
Ionic equilibrium | ≤|±30V|(AVE) |
Power dissipation time | ≤0.1-1.5S |
Airflow pressure | ≤0.7MPa |
With throttle valve Air source connector | Φ6-G1/8 Blue |
Working temperature | 0℃-50℃ |
Working humidity | <70% |
Outline dimension | L * W * H: {385-410 (25mm); in needle gauge); 460-2960 (50mm in needle gauge)} * 35 * 63.5mm |
Material of rod body | Flame retardant PVC, ABS, AL, SUS |
Installing accessories | Hanging angle can be installed by 180 degree rotation |
Warranty period | 1 Year |
Certification certificate | CE |
Product standard

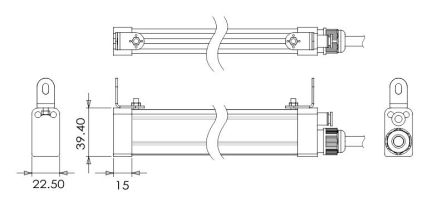

Product size

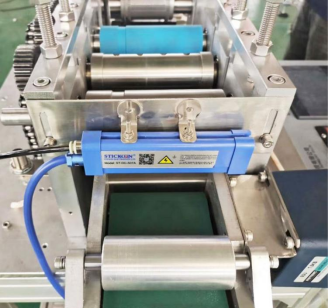

Real scene of product installation
