ST201C Infrared Induction Type Ion Nozzle
Characteristic
1. Inductive ion nozzle controls air flow through photoelectric switch. Adjustable induction
Distance
2. When no object passes through the nozzle, the induction switch will automatically turn off the
compressed gas, thus reducing unnecessary waste of compressed gas and noise.
3. The inductive ion nozzle can be matched with a foot switch to control compressed gas. When
the distance between the object and the ion nozzle is 300MM (the distance can be adjusted in the
range of 10-30CM), the ion nozzle will start immediately
4. Strong and adjustable air volume can immediately remove stubborn dust particles on the
surface of objects, and at the same time, it can well eliminate static electricity on the surface of
Objects
5. Stickon ST401A high voltage generator shall be equipped for integrated use.
Model Parameter | ST401A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 75W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 4.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion- proof environment | No |
Technical Parameter
Model | ST201C |
Ion generation mode | Ac type |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter φ 8 |
Body size | The length of 86mm(L)×30mm(W)×100mm(H) standard cable is 2.5M |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |

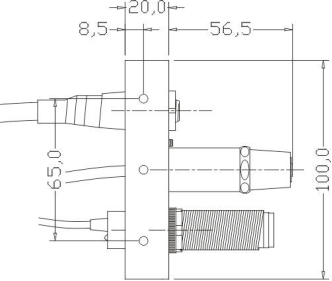

Product Size
