ST-36 Acousto-Optic Alarm Type Electrostatic Releaser for Human Body

Product Overview

ST-36 acousto-optic alarm explosion-proof human electrostatic discharger is an instrument for human electrostatic

discharge in inflammable, explosive and anti-static places. It is characterized by reasonable design of human

electrostatic discharge resistor, reasonable and effective control of human electrostatic discharge, prolonged

human electrostatic discharge time, reduced instantaneous human electrostatic discharge energy, and enabled

human electrostatic discharge safely.

Product Features

1. Ultra-low power design, no need to replace the battery during normal use

2. Touch sensing, no mechanical moving parts

3. Integral epoxy resin seal, anti-corrosion, waterproof and moisture-proof

4. Explosion-proof touch ball, safely release static electricity, human contact does not produce electric shock

5. Acousto-optic alarm indicates that the contact between human body and explosion-proof touch ball is reliable

and static electricity is released

6. The grounding wire is independently tested, and the grounding resistance meets the standard to ensure reliable

grounding

Working Status Indication

State 1: Sleeping state When the human body is not in contact with the touch ball, the human static discharge

alarm is in a sleeping state, the status indicator light is not on, and the buzzer does not alarm.

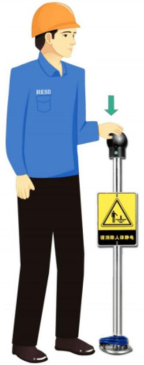

State 2: Static Discharge When the human body comes into contact with the touch ball, it triggers the human body

 static discharge alarm to work, the buzzer alarms and the red light flashes. Static electricity is being discharged at

this time, please keep it for 3-5 seconds.

State 3: After the static electricity is released, if the buzzer doesn't give an alarm and the green light flashes after

3-5 seconds of reliable contact between the human body and the touch ball, it means that the static electricity has

 been released normally and you can enter the work area for operation.

State 4: Alarm state When the human body makes reliable contact with the touch ball, if the buzzer gives an alarm

and the yellow light flashes, it means that the human static electricity release alarm is in alarm state, and the

human static electricity cannot be effectively released. Please check the grounding wire.

Technical Parameter

Electrical Parameters

Reference standard: The design of ST-36 human electrostatic discharge alarm refers to the following national

 standards: GB12158-2006 General Guidelines for Preventing Electrostatic Accidents, GB50074-2002 Code for

Design of Oil Depot, SH3097-2000, Code for Design of Electrostatic Grounding in Petrochemical Industry

Installation Guidelines

1. Erection of uprights

Product Overview

ST-36 acousto-optic alarm explosion-proof human electrostatic discharger is an instrument for human electrostatic

discharge in inflammable, explosive and anti-static places. It is characterized by reasonable design of human

electrostatic discharge resistor, reasonable and effective control of human electrostatic discharge, prolonged

human electrostatic discharge time, reduced instantaneous human electrostatic discharge energy, and enabled

human electrostatic discharge safely.

Product Features

1. Ultra-low power design, no need to replace the battery during normal use

2. Touch sensing, no mechanical moving parts

3. Integral epoxy resin seal, anti-corrosion, waterproof and moisture-proof

4. Explosion-proof touch ball, safely release static electricity, human contact does not produce electric shock

5. Acousto-optic alarm indicates that the contact between human body and explosion-proof touch ball is reliable

and static electricity is released

6. The grounding wire is independently tested, and the grounding resistance meets the standard to ensure reliable

grounding

Working Status Indication

State 1: Sleeping state When the human body is not in contact with the touch ball, the human static discharge

alarm is in a sleeping state, the status indicator light is not on, and the buzzer does not alarm.

State 2: Static Discharge When the human body comes into contact with the touch ball, it triggers the human body

 static discharge alarm to work, the buzzer alarms and the red light flashes. Static electricity is being discharged at

this time, please keep it for 3-5 seconds.

State 3: After the static electricity is released, if the buzzer doesn't give an alarm and the green light flashes after

3-5 seconds of reliable contact between the human body and the touch ball, it means that the static electricity has

 been released normally and you can enter the work area for operation.

State 4: Alarm state When the human body makes reliable contact with the touch ball, if the buzzer gives an alarm

and the yellow light flashes, it means that the human static electricity release alarm is in alarm state, and the

human static electricity cannot be effectively released. Please check the grounding wire.

Technical Parameter

Electrical Parameters

Reference standard: The design of ST-36 human electrostatic discharge alarm refers to the following national

 standards: GB12158-2006 General Guidelines for Preventing Electrostatic Accidents, GB50074-2002 Code for

Design of Oil Depot, SH3097-2000, Code for Design of Electrostatic Grounding in Petrochemical Industry

Installation Guidelines

1. Erection of uprights

2. Grounding wire installation

The grounding wire and the grounding pile are connected by M8 bolts, and the two copper noses are connected

separately (as shown below)

2. Grounding wire installation

The grounding wire and the grounding pile are connected by M8 bolts, and the two copper noses are connected

separately (as shown below)
