The main body Angle locking mechanism ensures that the main body in vibration and other external factors, the Angle will not change the ion fan
Product features:
1. Ion balance and its stability are excellent
2. Equipped with positive and negative ion balance indicator to improve maintenance efficiency
and static electricity removal efficiency
3. Through micro-discharge detection and over-current detection, safety is ensured
4. The angle locking mechanism of the main body ensures that the angle of the main body will
not change under external causes such as vibration
5. Equipped with alarm function when the high pressure is abnormal and the blower stops
6. Monitor high voltage abnormality, blower shutdown, and output abnormal signal
Technical parameter
Input voltage | DC24V (with AC adapter, support AC100-240V) |
Capacity | 6VA |
Output voltage | ±7000V0-p |
Ionic equilibrium | Under ±10V (300mm away, when leaving the factory) |
Air quantity | 0.7~1.2m3 /min |
Wind speed | 1.2~1.9m/s (the distance from the vent window to the center is 300mm) |
0.7~1.2m/s (wide-angle vent window is 300mm away from the center) | |
Ozone generation | Below 0.004ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0 ~ 40℃, ambient humidity: 15~ 85%RH (no condensation) |
Filter | Prefilter stage |
Abnormal output | Normal value : ON; In case of abnormal high voltage output or abnormal blower (red LED), 0FF MOS FET relay has no voltage contact output, with maximum current of 200mA and applied voltage below 30VDC |
Main body size | 180mm (L) ×110mm (W) ×200 (H)mm (including bracket) |
Weight | 1.4kg |
Noise | 51dB(A) distance 1m |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |
Accessory part | The replacement discharge needle assembly DC012B, the replacement filter ACOO6A and the AC adapter DC013B |

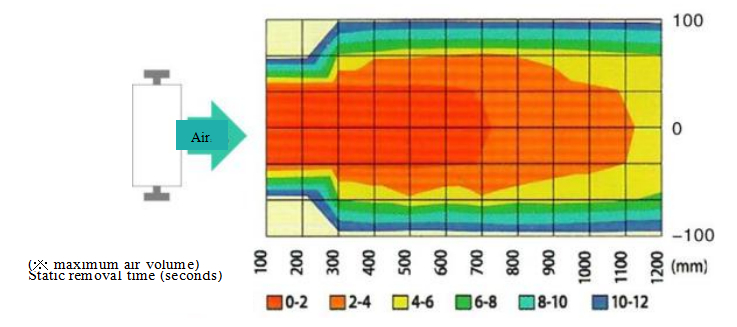

Electrostatic removal area
