Electrostatic needle and ionization indicator can be cleaned simply with an electrode dry brush
Product features:
1. Adopt high-speed wind energy to remove electricity widely
2. The electrostatic needle can be simply cleaned by electrode dry scrubbing

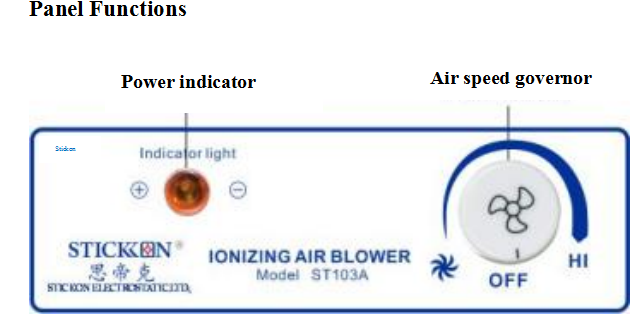

3. With ionization indicator
4. The fan has good grounding protection
5. Heating network device can be added (optional)
Technical Parameter
Input voltage | AC110v~220V 50/60HZ |
Capacity | 46VA |
Output voltage | 5.6KV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 1.4~3.2m3/min X3fan |
Ozone generation | Under 0.005ppm (distance 150mm) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation) |
Filter device | Pre-filter stage |
Output signal | Without |
Main body size | 600mm(L)×170mm(W)×124mm(H) (including bracket) |
Weight | 4.9kg |
Noise | 66dB(A) (distance 1m) |
Sheathing material | Iron |
Attached belonging products | Operating instructions, test reports, certificates and warranty cards |

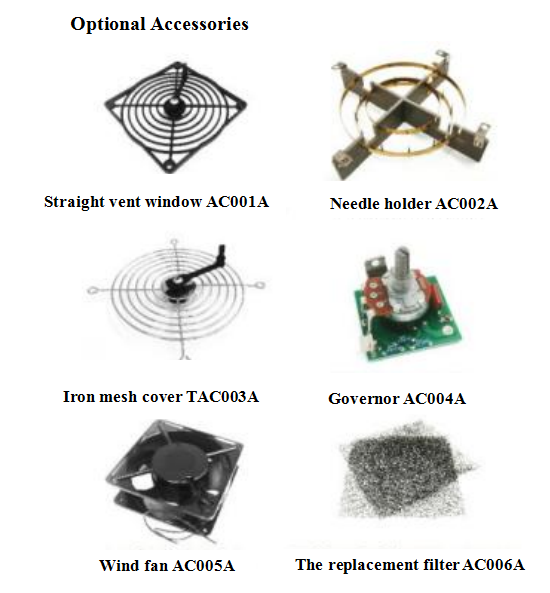

Accessory part | Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A |

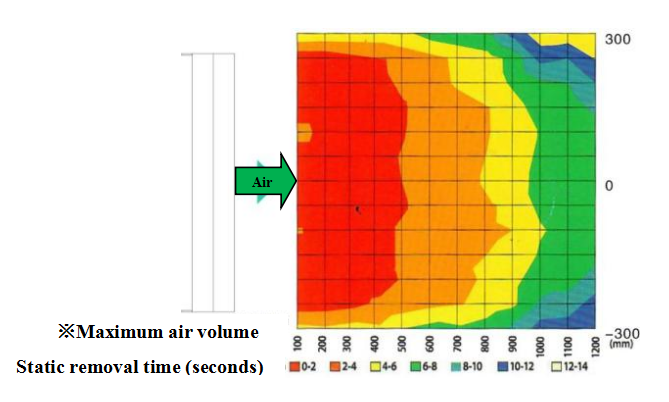

Electrostatic Removal Area

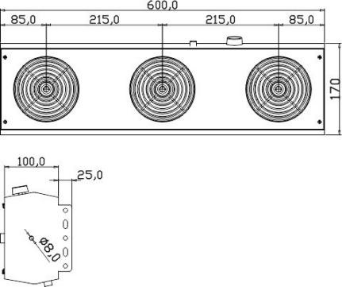

Product Size
