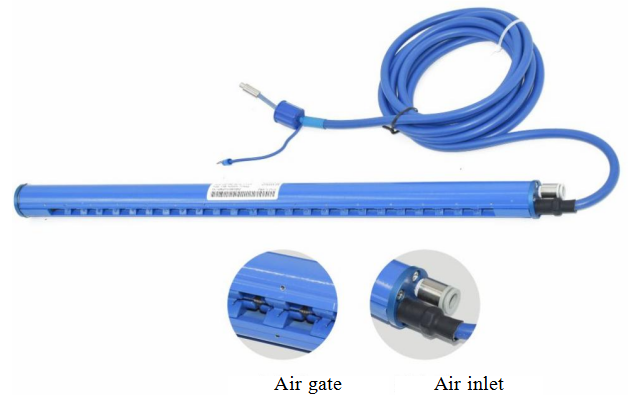

Built-in unique high air volume air pipe can quickly neutralize ions, hard aluminum shell, safe induction without electric shock design, beautiful appearance, durable electrostatic ion bar
Customizable length: 150~3000mm
Product Features:
1. Built-in unique high air volume trachea can quickly neutralize ions
2. Hard aluminum shell, safety induction non-electric shock design, beautiful appearance and durability
3. It can only be used with ST403A high voltage power supply (it needs to be purchased separately).
4. Blue shell
Model Parameter | ST403A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 95W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 7.0KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST503A |
Ion generation mode | Piezoelectric type |
Input voltage | 110V~220V 50~60HZ |
Power consumption | 110W |
Output voltage | 7.0KV |
Output when abnormal | 7.5KV |
Gas consumption | 0.05m3/min within 600mm of bar length |
Neutralization time | <2s |
Measure | Diameter 30mm×(150mm~3000mm) |
Supply pressure range | Under 0.5Mpa |
Ionization equilibrium | <±40V |
Work environment | Ambient temperature: 5~40℃, ambient humidity: 15~85% (no condensation) |

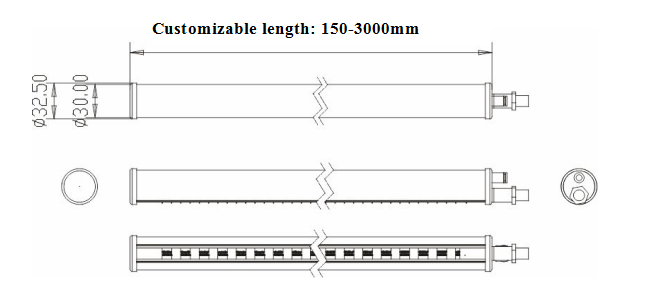

Product Size
