Can be directly placed in a variety of working areas, and set to automatic control, ion action distance up to 1 meters
Product Features:

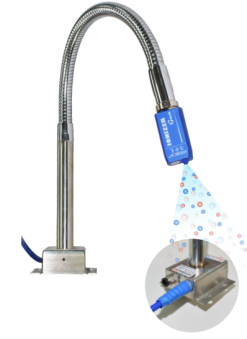

1. Manually deform the snake tube, randomly change the direction and point to the target object, and let the ion
airflow blow directly to the target surface
2. It can be directly placed in various working areas and set to automatic control, and the action distance of ions
can reach 1 meter
3. Quick elimination of static electricity makes it easier to clean small and sensitive parts and materials
4. Built-in high-voltage generating needle of fixed electrostatic eliminator capable of providing strong ionic wind
to objects
5. Ingeniously designed as "no electric shock" high-voltage discharge, safe and efficient static removal
6. Stickon ST402A high-voltage generator is required for integrated use
7. Outer sheath (blue bellows) can be added
Model Parameter | ST402A |
Operating power supply | 110V/60Hz or 220V/50Hz |
Consumption current | 0.23A or 0.12A |
Power | 85W |
Operating temperature range | 0-50℃ |
Weight | 2.25kg |
Length of high voltage wire | 1.5m |
Output voltage | 5.6KV×2 or 4 |
Output current | 4.5mA |
Can it be used in explosion-proof environment | No |
Technical Parameter
Model | ST201DF |
Ion generation mode | Rectifier type, no electric shock |
Material of discharge needle | Wolfram steel |
Host material | Iron/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter φ 8 |
Body size | The length of 550mm(L)×30mm(W)×86mm(H) standard cable is 2.5M |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min |
Noise | 56DB (3kg or less) |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |
Product Size
The Usage Scenarios
