The installation and use method of fan release device with key potentiometer adjusting air volume and LED indicator showing air volume visually

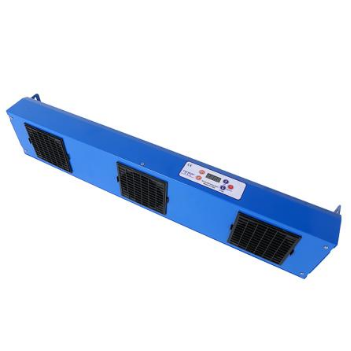

ST103CHanging three-head DC ion fan

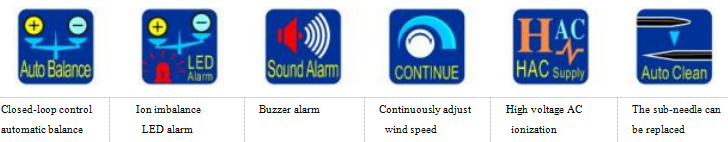

Product features:

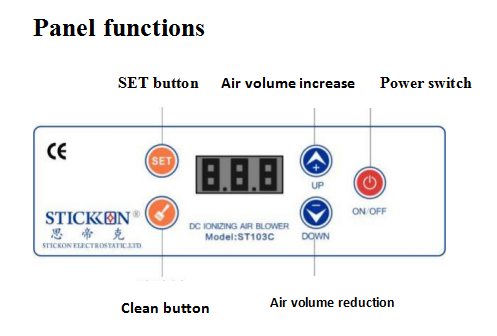

1. The button potentiometer adjusts the air volume, and the LED indicator directly displays the air
volume.
2. The output of ions in the same class is the largest, and the static elimination speed is fast.
3. Adopt safe low-voltage configuration and strict safety protection device to ensure more reliable
use.
4. Stepless speed regulation, flexible adjustment of wind speed, scale marking is more helpful for
visual management.
5. The front and rear masks can be quickly removed to easily clean the ion needle and fan.
6. The unique plug-in ion needle design makes it easier to replace, which ensures to prolong the
service life of the fan.
7. Automatic cleaning function can be added. Built-in cleaning brush saves more time in
maintenance and cleaning. Automatic mode basically needs no maintenance.
Technical parameter
Input voltage | DC24V (with AC adapter, support AC100-240V) |
Capacity | 30VA(When the fan is at its maximum) |
Output voltage | ±7500V0-P |
Ionic equilibrium | Under ±10V (300mm away, when leaving the factory) |
Air quantity | 1.5s or less (distance 300mm; When the air volume is maximum, when the factory leaves the factory) |
Wind speed | 1.4~3.2m3/min X3fan |
0.8~1.0m/s (300mm from the center) | |
Ozone generation | Under 0.006ppm (distance 1500mm) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15~85% RH (no condensation) |
Filter | Prefilter stage |
Output signal | MOS FET relay has no voltage contact output (NC output), (alarm output and ion balance alarm output) |

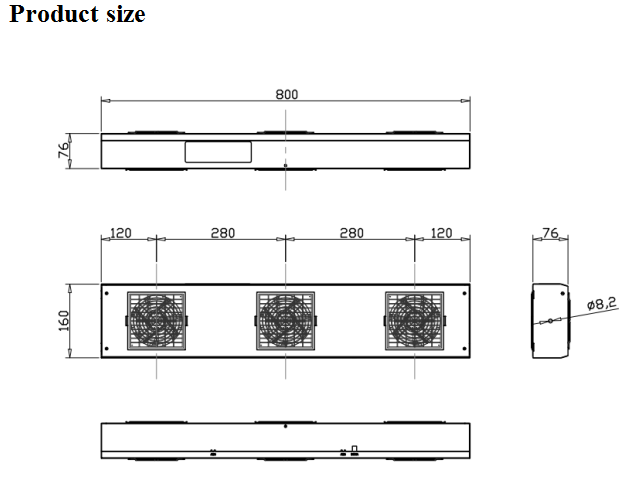

Main body size | 800（L）×160(W)×76mm(H) (including bracket) |
Weight | 5.05kg |
Noise | 61dB(A) （distance 1m） |
Sheathing material | Iron |
Appendix | Operating instructions, test reports, certificates and warranty cards |

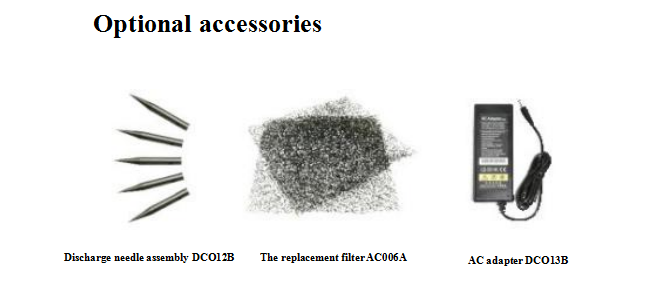

Accessory part | Replace the discharge needle assembly DC012B, replace the filter AC006A, AC adapter DC013B |

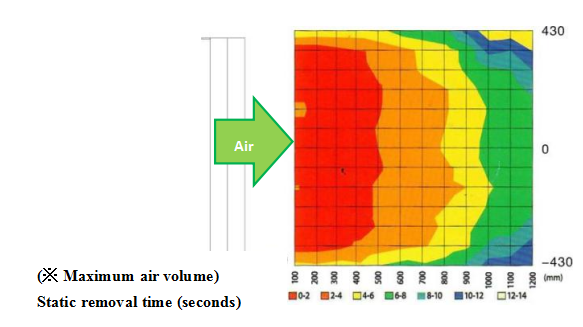

Electrostatic removal area
