How to maintain the ionic wind rod and power supply in one

Q: How to maintain the ionic wind rod and power supply in one

A: Ionic wind rod has a wide range of applications in many electronic industries, used for large-scale, very large scale integrated circuit cleaning

Clean workshop to avoid static electricity generated by human body moving in workshop. At the same time, the ionic wind rod is sometimes indispensable in the use process

There will be some wear and tear. So we need to regularly maintain and maintain the ionic wind rod, so how do we have a good separation

Sub-wind rod maintenance and maintenance?

Due to the friction, stripping, extrusion and induction between items in industrial production, the surface area of the object does not exist

Isotropic charge. When such charge accumulation reaches a certain extent, industrial products will produce electrostatic adsorption and discharge

Phenomenon. Static charge accumulation and discharge will cause great influence and damage to industrial production. What the ionic wind rod does is

A large number of positive and negative charges are generated by air ionization, and the positive and negative charges are blown out by dry and clean compressed air. To form a

A stream of positive and negative charges neutralizes the charge on the surface of the object. When the surface of an object is negatively charged, it will

It attracts the positive charge in the flow, and when the surface is positively charged, it attracts the negative charge in the current, and so on

The static electricity on the surface of the object is neutralized to eliminate static electricity. If the ionic wind rod put electric needle surface with ash

Dust will hinder the discharge needle of the ionic wind rod to ionize the air into positive and negative charges, and the load increases under long working time, resulting in

A certain amount of heat reduces the performance of plastic components and causes embrittlement.

How to maintain:

1. If the indicator on the panel of a power box is off, stop using it and check it by special maintenance personnel

Repair, ensure that the power box works properly before use

2, it is recommended to replace the parts regularly, so as not to burn the high voltage generator. The part that needs to be replaced is the high voltage output

Port (plastic parts), so parts in the long-term high voltage environment work, easy to appear aging phenomenon, so

To recommend timely inspection and replacement.

3. Use infrared thermometer to test whether there is high temperature phenomenon in the high voltage generator shell. If there is such phenomenon, stop using it.

To avoid adverse effects on other components, such as aging and falling off of plastic fixtures.

4. In the process of using the ionic wind rod, when the tip of the needle accumulates dust or debris, it must be cleaned in time.

5. Use electrostatic brush and dust-free cloth to dip anhydrous industrial alcohol to gently remove dust on the shell of ionic wind rod.

At least once a week.

Instructions for operation:

1. How to check whether parts need to be replaced -- daily chec

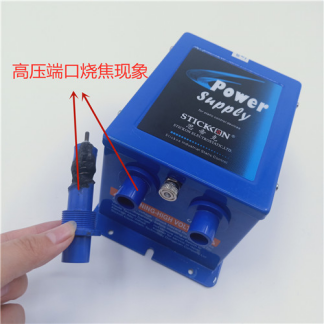

(1) Twist the high-pressure plastic port by hand to see if it is loose

Check whether the high-pressure plastic port is charred

▲ Pay attention to the burning part in the power supply, so check the way is 1, smell the burning smell, hear the burning sound

2. No reaction after plugging in the power supply

▲ If the high pressure plastic port is found to be loose or burnt, stop using it immediately and inform the supplier to replace the zero part

Please do not remove it without permission.

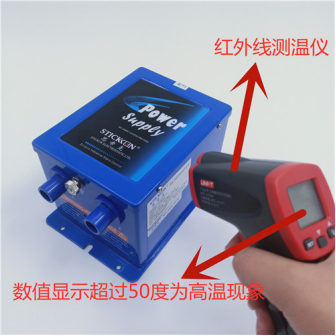

2. How to use infrared thermometer to test whether the high voltage generator shell has high temperature phenomenon

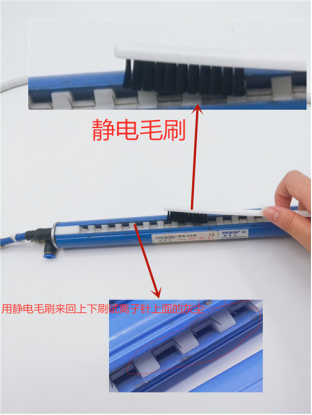

3 In the process of using the ionic wind rod, how to clean the dust or debris on the launching tip of the ionic wind rod

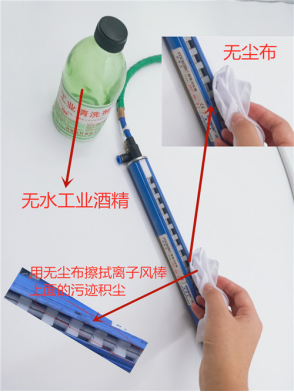

4. How to clean dust on the shell of ionic wind rod -- detailed operation as shown in the figure below

▲ It must be operated 10 minutes after the power is cut off.

▲ After cleaning, you must wait for alcohol to volatilize completely, and then power on the work, can not use any other organic solvents to clean the bar body.

Matters needing attention:

1. The power input power (220V AC) of the power box must be connected to a reliable ground terminal.

2. The ground cable of the ionic wind rod must be connected to the ground terminal of the power box to ensure user safety.

3. The device should not be used in rain or wet environment.

4. Do not use the device in inflammable and explosive environment.

5. It is strictly forbidden to disassemble products without authorization. Internal maintenance and repair must be carried out by professional personnel.

6. Turn off the power when checking or replacing the product; otherwise, electric shock or fire may occur.

7. Specially designed for removing static electricity, it is forbidden to use for other purposes, any abnormal use may cause machine failure, electric shock, fire and other hidden dangers.

8. It is forbidden to touch the electrode needle under the state of power-on, otherwise it may cause fault and electric shock accident.

9. Electroacupuncture is a sharp metal object, please use it with care.

10. Before powering on the product, please check the specifications of the power supply. Any power supply that does not meet the specifications may cause damage or even failure to the product.
