Stockon ST503A new piezoelectric ionic wind rod maintenance
Q: How to maintain the piezoelectric ionic wind rod
A: Ionic wind rod has a wide range of applications in many electronic industries, used for large-scale, very large scale integrated circuit clean workshop, avoid human
Body movement in the workshop generates static electricity. At the same time, the ionic wind rod is sometimes necessary in the use of some wear and tear. So we have to make regular departures
Sub-wind rod maintenance and maintenance, so how do we good maintenance and maintenance of ionic wind rod?
In industrial production, due to the friction, stripping, extrusion and induction between objects, the surface area of objects has different properties of charge.
When such charge accumulation reaches a certain degree, the industrial products will produce electrostatic adsorption and discharge phenomenon. Electrostatic charge accumulation and discharge on industry
Production can cause a lot of impact and disruption. The role of ionic wind rod is to use air ionization to produce a large number of positive and negative charges, and dry clean pressure
Shrinking air blows out positive and negative charges. It creates a stream of positive and negative charges that neutralize the charge on the surface of the object. When the surface is negative
When the surface of an object is positively charged, it attracts a negative charge from the current, making the object
The static electricity on the body surface is neutralized to eliminate static electricity. If there is dust on the surface of the electric needle, it will hinder the discharge of the ionic air rod
Electroneedle ionized air into positive and negative charges, long time working load increases, resulting in a certain amount of heat, so that the performance of its plastic parts decline, manufacturing Embrittlement.
How to maintain:
1. In the process of using the ionic wind rod, when the tip of the needle accumulates dust or debris, it must be cleaned in time.
2, with electrostatic brush, dust-free cloth dipped in anhydrous industrial alcohol gently remove dust on the shell of the ionic wind rod, at least once a week.
Instructions for operation:

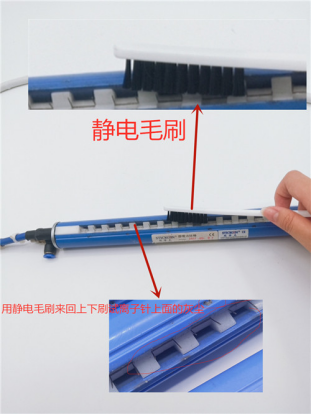

1. In the process of using the ionic wind rod, how to clear the dust or debris from the launching tip of the ionic wind rod

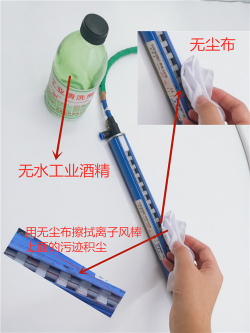

2. How to clean dust on the shell of ionic wind rod -- detailed operation as shown in the figure below
▲ It must be operated 10 minutes after the power is cut off.
▲ After cleaning, you must wait for alcohol to volatilize completely, and then power on the work, can not use any other organic solvents to clean the bar body.
Matters needing attention:
1. The power input power (220V AC) of the power box must be connected to a reliable ground terminal.
2. The ground cable of the ionic wind rod must be connected to the ground terminal of the power box to ensure user safety.
3. The device should not be used in rain or wet environment.
4. Do not use the device in inflammable and explosive environment.
5. It is strictly forbidden to disassemble products without authorization. Internal maintenance and repair must be carried out by professional personnel.
6. Turn off the power when checking or replacing the product; otherwise, electric shock or fire may occur.
7. Specially designed for removing static electricity, it is forbidden to use for other purposes, any abnormal use may cause machine failure, electric shock, fire and other hidden dangers.
8. It is forbidden to touch the electrode needle under the state of power-on, otherwise it may cause fault and electric shock accident.
9. Electroacupuncture is a sharp metal object, please use it with care.
10. Before powering on the product, please check the specifications of the power supply. Any power supply that does not meet the specifications may cause damage or even failure to the product.
