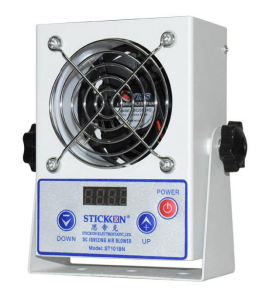

Working principle of ion fan

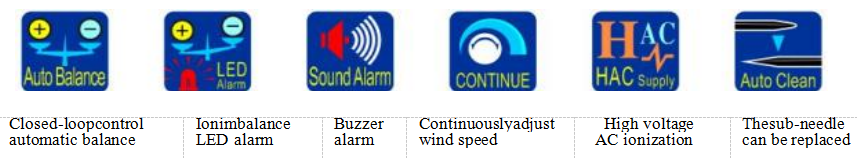

Product features:
1. Capacitive key switch, control, more concise and beautiful
2. Ultra-small type, which can be installed in narrow spaces such as the inside of the machine, and is suitable for
stepless adjustment of air volume in places where air can not be used
3. Using HDC-AC mode, the discharge needle is anti-fouling and can exert stable static electricity removal
performance for a long time
4. The vent window and discharge needle assembly can be assembled and disassembled with one touch, and have
the safety design of disassembling the vent window and cutting off the power supply
5. The key potentiometer adjusts the air volume of the blower, which can directly display the air volume
indication function
Technical parameter
Input voltage | DC24V±5% |
Capacity | 5VA |
Output voltage | AC2.5kV |
Ionic equilibrium | Below ±10V (when leaving the factory) |
Air quantity | 0.2 ~0.30m3 /min |
Ozone generation | Below 0.04ppm (150mm center in front of tuyere) |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15, 65%RH (no condensation) |
Filter | Without |
Main body size | 145mm (L) ×85mm (W) ×150(H)mm (including bracket) |
Weight | 0.8kg |
Noise | 48dB(A) with a distance of 1m, |
Sheathing material | Iron (optional: stainless steel) |
Appendix | Operating instructions, test reports, certificates and warranty cards |
Accessory part | The replacement discharge needle assembly DC012B, the AC adapter DC013B, and the power signal line (2M) |

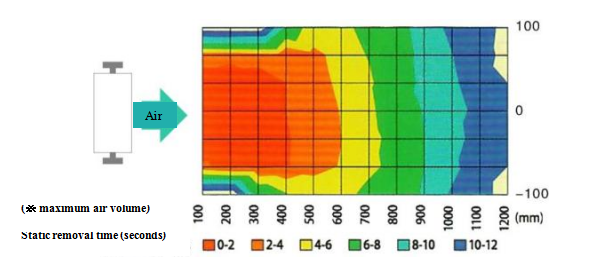

Electrostatic removal area

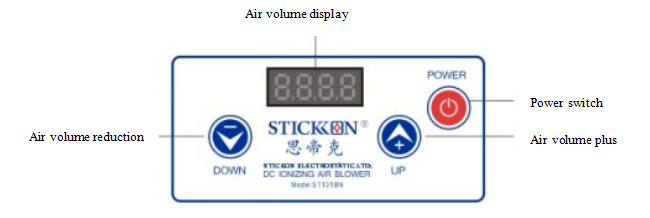

Panel functions

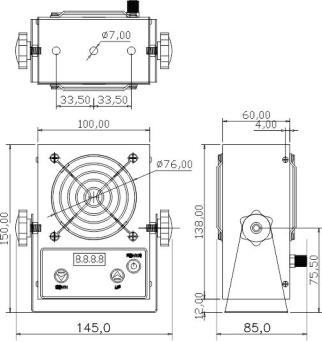

Product size

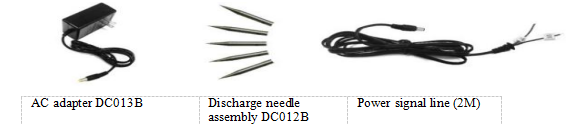

Optional accessories
