Compact shape, light weight, portable design of ionic fan
ST-101S Desktop AC Ion Blower
Product features:
1. Plastic shell, ABS fireproof material
2. Small size, light weight, portable design and adjustable angle
3. Flexible adjustment of wind speed (stepless adjustment of wind speed)
4. Good insulation, anti-motor and high safety
Technical parameter
Input voltage | DC24V (with AC adapter, support AC100-240V) |
Capacity | 30VA |
Output voltage | 5.6KV |
Ionic equilibrium | Soil below 10V (when leaving the factory) |
Air quantity | 45~110CFM |
Wind speed
| 1.8 ~3.6m/s (the distance from the vent window to the center is 300mm) 0.4~0.6m/s (wide-angle vent window is 300mm away from the center) |
Ozone generation | <0.03ppm |
Work environment | Ambient temperature: 0~40℃, ambient humidity: 15.85% RH (no condensation) |
Filter | Without |
Output signal | Without |
Main body size | 195mm (L) ×100mm (W) ×250 (H)mm (including bracket) |
Weight | 1.9kg |
Noise | 49dB~60B |
Sheathing material | ABS engineering plastic shell |
Appendix | Operating instructions, test reports, certificates and warranty cards |

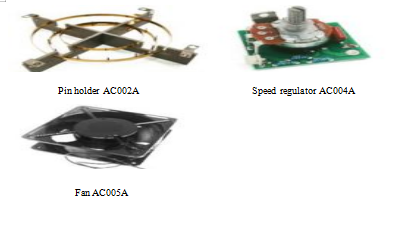

Accessory part | Needle holder AC0O2A, Governor ACOO4A, blower AC005A |

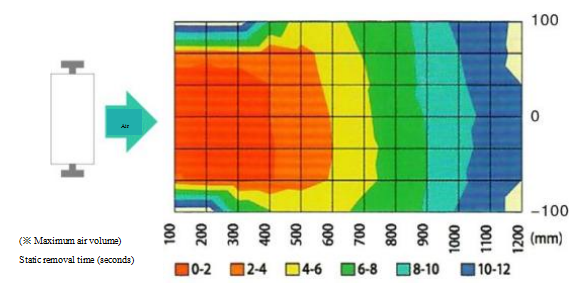

Electrostatic removal area
Optional accessories
