Recommended today - The ionic wind snake quickly eliminates static electricity and makes it easier to clean small sensitive parts and materials

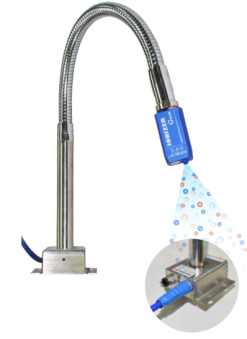

ST201EF Stainless Steel Bottom Box Rectifier Type Ion Wind Snake Nozzle
Product Features:
1. Manually deform the snake tube, randomly change the direction and point to the target object, and let the ion
airflow blow directly to the target surface
2. It can be directly placed in various working areas and set to automatic control, and the action distance of ions
can reach 1 meter
3. Quick elimination of static electricity makes it easier to clean small and sensitive parts and materials
4. Built-in high-voltage generating needle of fixed electrostatic eliminator capable of providing strong ionic wind
to objects
5. Ingeniously designed as "no electric shock" high voltage discharge
6. Stainless steel bottom box fan-shaped ion wind snake nozzle is a new type of fixed type
7. Stickon ST401A high-voltage generator is required for integrated use
8. Outer sheath (blue bellows) can be added
Technical Parameter
Model | ST201EF |
Ion generation mode | Rectifier type |
Material of discharge needle | Wolfram steel |
Host material | Iron/stainless steel/ABS fireproof engineering plastics |
Air ion supply range | 8cm~15cm |
Air inlet pipe | Duct with inner diameter φ 8 |
Body size | The length of 99mm(L)×100mm(W)×900mm(H) standard cable is 2.5M |
Appendix | Instructions/warranty cards/certificates |
Performance | Static removal time < 1.5S |
Air consumption | 0.08m³/min (3kg under 3kg air pressure) |
Noise | 56DB |
Ozone production | < 0.02ppm or less (measuring distance 200mm) |
Product Size
Installation Scene
