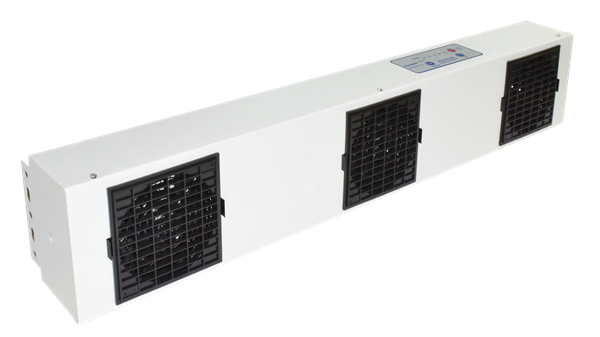

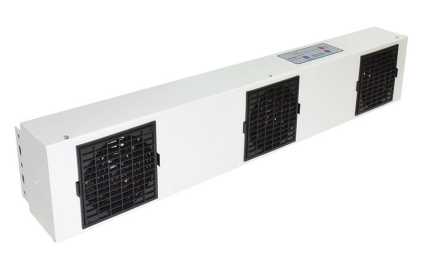

ST103B Key-Press Type Three-Head DC Ion Fan

Product features:

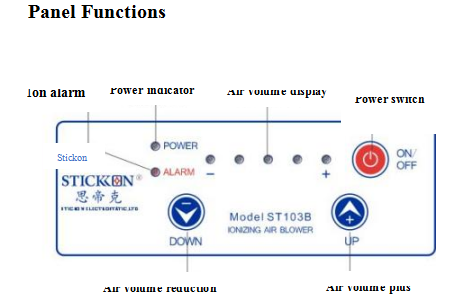

1. LED indicator lamp for adjusting air volume by push-button potentiometer visually displays air volume

2. In the same level, the ion output is the largest, and the static electricity elimination speed is fast

3. Adopt safe low-voltage configuration and strict safety protection device to ensure more reliable use

4. Stepless speed regulation, flexible adjustment of wind speed, scale marking is more helpful for visual

Management

5. The design of replacing lighting tubes is humanized, and maintenance and cleaning are more time-saving

6. The front and rear masks can be quickly removed, and the ion needle and fan can be easily cleaned

7. The unique plug-in ion needle design makes it easier to replace, ensuring to prolong the life of the fan

8. Automatic cleaning function can be added with built-in cleaning brush, and automatic mode basically does not

need maintenance

Technical Parameter

Input voltage	DC24V (with AC adapter, support AC100-240V)
Capacity	30VA (when the fan is maximum)
Output voltage	±7500V0-P
Ionic equilibrium	Below 5 V (distance 300mm: when leaving the factory)

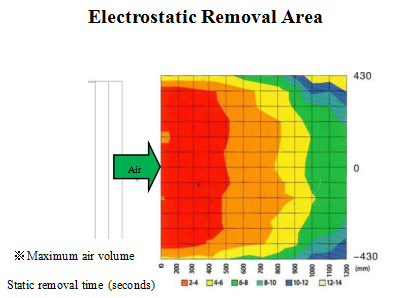

Static removal time	Under 1.5s (distance 300mm; Maximum air volume, when the factory leaves the factory)
Air quantity	1.4~3.2m³/min X 3 fan
Wind speed	0.8~1.0m/s (300mm from the center)
Ozone generation	Under 0.006ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation)
Filter device	Pre-filter stage
Output signal	The MOS FET relay has no voltage contact output (NC output), (OFF when high voltage is abnormal)
Main body size	800mm(L)×170mm(W)×125mm(H) Including bracket
Weight	5.05kg
Noise	61dB(A) (distance 1m)
Sheathing material	Iron
Attached belonging products	Operating instructions, test reports, certificates and warranty cards

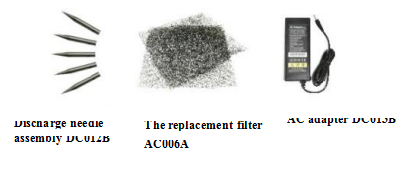

Accessory part	The replacement discharge needle assembly DCO12B and the replacement filter ACO06A AC adapter DCO13B

Product Size

Optional Accessories
