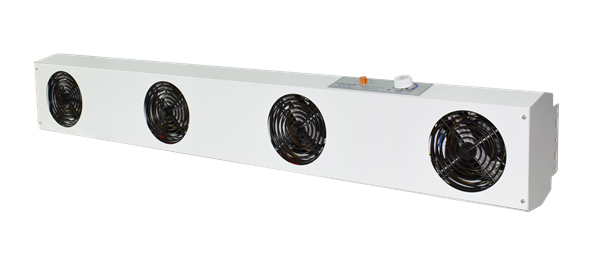

ST106 Suspended Four-Head AC Ion Fan

Product Features:

1. Powerful ionization device, multi-unit independent ion sending port combination, can quickly neutralize static

Electricity

2. Fan stepless speed regulation, wide wind power regulation range, large ion airflow coverage area, suitable for

large area

3. The ion balance voltage is 0 V±10 V, and the ion balance is stable. If necessary, an ion regulator can be

Installed

4. There is a special ion needle cleaning brush, and the front and rear mesh covers are detachable, which is

convenient for cleaning and maintenance

5. Good grounding protection function to ensure production safety

6. The use of hanging installation can greatly save space

7. You can choose to install filters and cold air heating devices to improve the working environment

Technical Parameter

Input voltage	AC110v~220V 50/60HZ
Capacity	55VA
Output voltage	5.6KV
Ionic equilibrium	Below ±10V (when leaving the factory)
Static removal time	1.5 seconds or less (distance 300mm, maximum air volume: when leaving the factory)
Air quantity	1.4~3.2m3/min X 4 fan
Wind speed	0.8~1.0m/s (300mm from the center)
Ozone generation	Under 0.006ppm (distance 150mm)
Work environment	Ambient temperature: 0~40℃, ambient humidity: 15~85%RH (no condensation)
Filter device	Pre-filter stage
Output signal	Without
Main body size	1100mm(L)×170mm(W)×125mm(H)
Weight	7.6kg
Noise	66dB(A) (distance 1m)
Sheathing material	Iron
Attached belonging products	Operating instructions, test reports, certificates and warranty cards

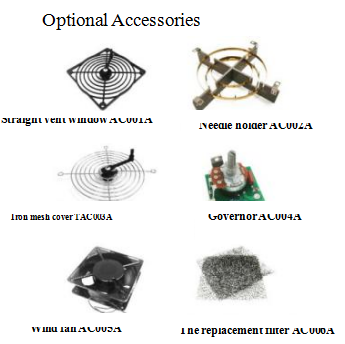

Accessory part	Straight vent window AC001A, needle holder AC002A, iron mesh cover AC003A, governor AC004A, fan ACO05A and replacement filter ACO06A

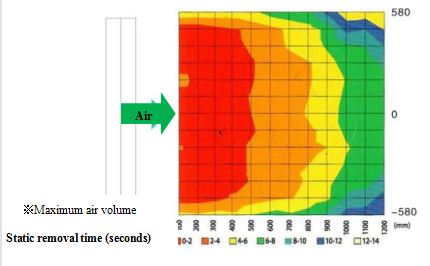

Electrostatic Removal Area

Product Size
